UPV2100
Ultrasonic Pulse Velocity Tester
The UPV2100 Ultrasonic Pulse Velocity Tester calculates the sound wave velocity based on the propagation distance and time of the received ultrasonic pulses, and then evaluates the performance of solid materials and detects defects such as cracks.
-
Host integrated design, easy to operate, efficient detection
-
Having multiple detection modes
-
Can be connected to an external transducer
Applications :
The ultrasonic speed depends on the density and elasticity of the material, as well as the presence of defects such as cracks, which determine the strength and quality of the material. By detecting objects, structures, and building components, the following information can be obtained: Strength; Density;Crack depth.
About the Product
Product Specifications Overview
|
Feature
|
Description
|
|---|---|
|
Upper limit of measurement range for integrated ultrasonic |
100 |
|
Upper limit of integrated ultrasonic pulse propagation timel |
120 |
|
Allowable range of basic absolute error in ultrasonic pulse propagation |
Speed range between 1000 and 2499 meters per second ± (0.02Vd+10)
Within the speed range of 2500 to 6499 meters per second ± (0.01Vd+10)
The speed range is 6500 to 10000 meters per second ± (0.03Vd+10)
|
|
The allowable error limit (in microseconds) for the main absolute error |
The speed range is between 1000 and 2499 meters per second ± (0,02To+0,1) |
|
Center distance of integrated ultrasonic transducer (mm) |
120 ± 1 |
|
Ultrasonic oscillation operating frequency (kHz) |
50 ± 5 |
|
Instrument power supply voltage (V) - powered by built-in battery |
3.7 ± 0.5 |
|
Power consumption (W), not exceeding |
5 |
|
Average battery life (h) |
8 |
|
Host weight (kg), not exceeding |
0.65 |
|
Overall dimensions of the host (L*W*H) (mm) |
240 × 65 × 140 |

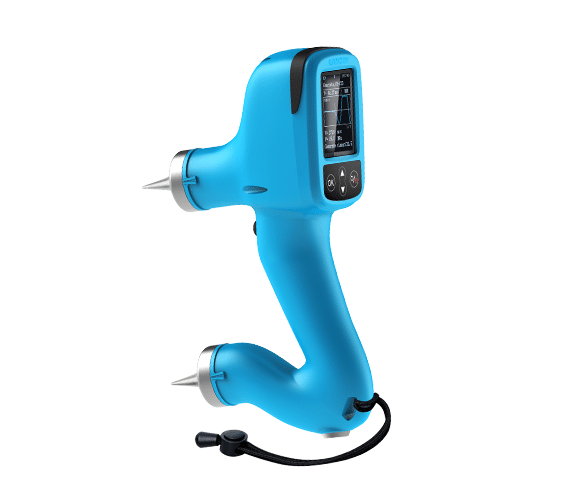

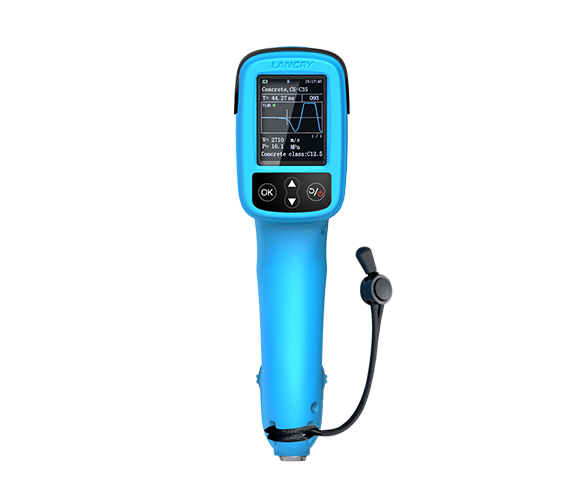

UPV2100 Ultrasonic Pulse Velocity Tester
-
A professional concrete testing instrument with multiple testing modes.
-
The integrated design of the host makes operation simple and detection easy and efficient.
-
External receiving transducer can be used to achieve Opposite Faces Pulse Velocity Method and Adjacent Faces Pulse Velocity Method, with higher detection accuracy.
-
High magnification acquisition, accurately reflecting waveforms when facing complex working conditions and long-distance testing.
-

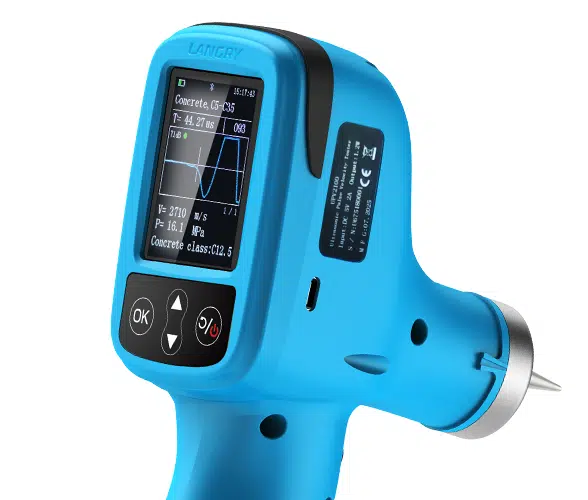

2.4-inch high-definition color LCD screen.
-
Professional upper computer data analysis software.

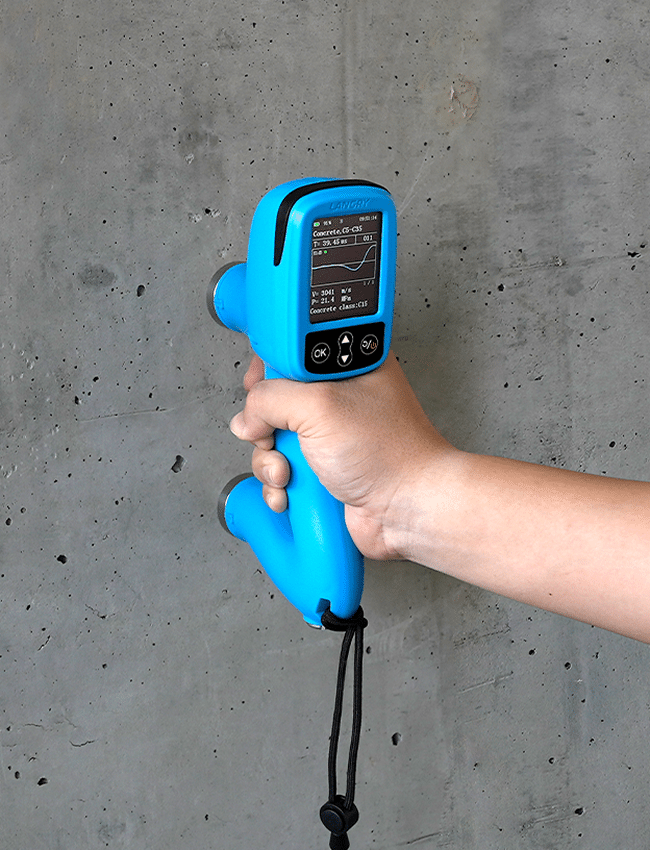

Description
The UPV2100 Ultrasonic Pulse Velocity Tester calculates the sound wave velocity based on the propagation distance and time of the received ultrasonic pulses, and then evaluates the performance of solid materials and detects defects such as cracks. The ultrasonic speed depends on the density and elasticity of the material, as well as the presence of defects such as cracks, which determine the strength and quality of the material.
By detecting objects, structures, and building components, the following information can be obtained:
- Strength;
- Density;
- Crack depth.

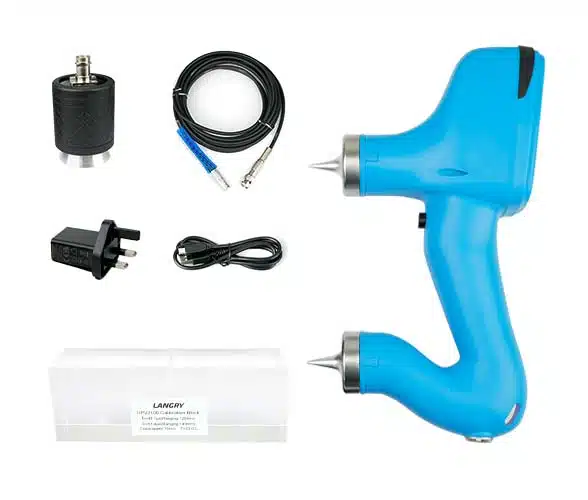

Host
Transducer
Signal line
Calibration block
Power adapter And Data cable
Cloth bag
