Testing anvil GZI/GZII
Experience top-notch calibration with LANGRY’s Testing Anvil GZII. Crafted from high-quality steel, this rebound hammer calibration tool guarantees optimum performance and accuracy. Boost productivity today!
- Durable construction for long-term use.
- Accurate calibration capabilities.
- Compatible with various crack depth detection devices.
Applications :
The Testing Anvil GZII enables precise calibration of rebound hammers for consistent and dependable measurements in structural integrity assessments. It is widely used in quality control, research laboratories, and manufacturing settings.
CTN DIM: 258×258×430mm
CTN DIM: 345×115×260mm
G.W.: 20.1kg
G.W.: 3.1kg
CTN DIM: 345×115×260mm
About The Product
Uncover our Testing Anvil GZII in detail. Each component is meticulously crafted to ensure unmatched performance and lasting durability.
Product Specifications Overview
- Size-Φ50* 205mm
- Value of [R]-80±2
- Hardness- HRC 58-62
- Weight of anvil-16kg
Name |
GZI Testing anvil |
GZII Testing anvil |
|---|---|---|
| Value of [R] | 83±1/88±2 | 80±2/74±2 |
| Anvil core hardness | HRC 58-62 | HRC 58-62 |
| Weight of anvil | 20kg | 16kg |
Product Features
- High-quality steel and tool steel construction.
- The connecting surfaces of the anvil core and body, which fit together using Morse taper No. 4, are finely ground.
- Durable enough for 5,000-8,000 bounce tests, with surface grinding capability for reuse.
- Corrosion-resistant design for long-lasting performance.

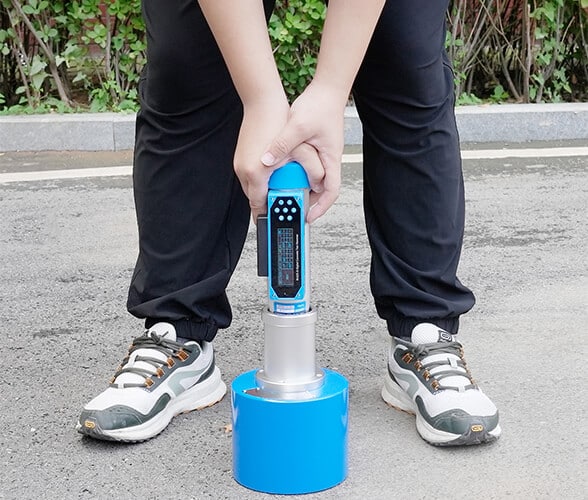

Test anvil GZII
LANGRY’s Testing Anvil GZII is essential for accurate rebound hammer calibration. Placed on a rigid horizontal surface, it ensures precise calibration vertically or horizontally. The average calibration value of the N-type concrete rebound hammer (2.207J) is [R] = 80±2. Furthermore, its Rockwell hardness of HRC 58-62 guarantees durability. The testing anvil is usually kept in a dry and dustproof place to prevent corrosion. The test surface shall not be knocked against at will to ensure the inspection tool’s standard state.
Product Specifications Overview
Name |
Specifications |
|---|---|
| Hydraulic cylinder stroke | 10mm |
| Display mode | kN,MPa Can be set, adjustable |
| Measuring range | 0-10kN |
| Accuracy | 0.001kN |
| Peak hold | Yes |
| Data storage | More than 500 |
| Accuracy grade | ±0.5%(F.S) |
| Weight | 3kg |
Product Features
- Peak holding function. (Test)
- Manual/automatic storage and deletion of measurement data (500 pieces).
- High-precision S-type force sensor.
- Calibrate 10 segment broken line correction or full-scale calibration mode.
Description
The Langry Pull-off Tester LR-P10 offers comprehensive testing capabilities for various construction applications. Whether assessing the pull-off force of thermal insulation materials, bonding strength of wall insulation, or tapestry brick adhesion, this device delivers precise results. With an integrated design and customizable display options, including pressure measurement in kN or MPa, it ensures convenient operation and accurate readings. Equipped with peak hold functionality and ample data storage capacity, the LR-P10 is a reliable companion for construction professionals seeking efficiency and accuracy in their testing processes.
Order Testing Anvils in Bulk Now
Seize the opportunity to stock up and save on bulk orders of quality Testing Anvils.
OEM & ODM Facilities
Go beyond the ordinary with LANGRY’s comprehensive OEM and ODM services for NDT Equipment. We empower you to customize every aspect of our products, from the inside out.
- Integrate your logo seamlessly onto the front-of-box label, nameplate, and user manual. Simply send us your logo file, and we'll handle the rest.
- Ensure everything meets your expectations. We'll send you a sample rebound hammer customized with your branding for approval before production begins.
Contact LANGRY today to explore the possibilities and receive a personalized quote. We’re here to turn your vision into a reality.
