Rebound Hammer Testers for Assessing Concrete Strength
Discover LANGRY’s rebound hammer tester. It’s an essential tool used to test the compressive strength of ordinary concrete in structural engineering work.
Introducing Our Rebound Hammer Tester
- Our rebound hammers streamline the rebound detection process. They improve work efficiency for testing personnel.
- It collects sampling data from the rebound hammer. Then, it verifies, stores, and calculates the data. It also offers features like report printing, data export, and instrument management.
- Our concrete rebound hammers come with a built-in Bluetooth chip. It lets you connect to a portable Bluetooth printer.
Applications of Rebound Hammer Tester
- Rebound hammers are indispensable for assessing the compressive strength of ordinary concrete in structural engineering projects.
- A rebound hammer is a vital tool in materials testing labs, used for calibration in research.
- It optimizes drilling and blasting operations by assessing the strength of rock formations. This improves safety and productivity in mining activities.
- With precise calibration, it accurately measures rebound values, providing valuable insights in construction.
Product Comparison
Our product comparison will help you find the best rebound hammer tester for your concrete testing requirements. Assess performance, accuracy, and durability to ensure precise and reliable results every time.
Product name |
RH225-A Concrete Test Hammer  |
RH225-B Digital Concrete Test Hammer  |

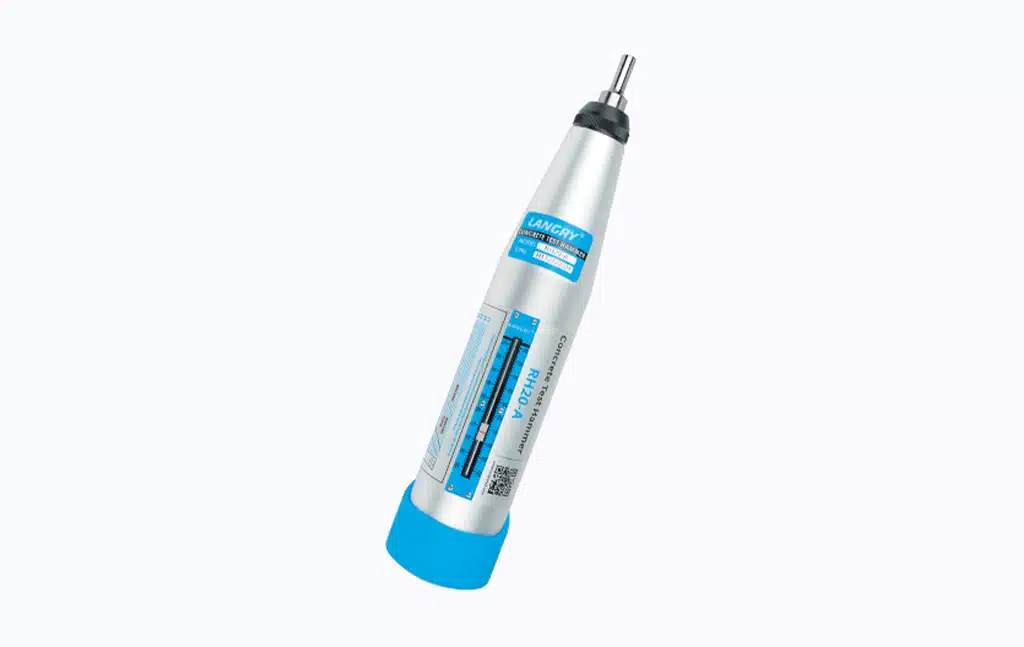

RH20-A Concrete Test Hammer  |

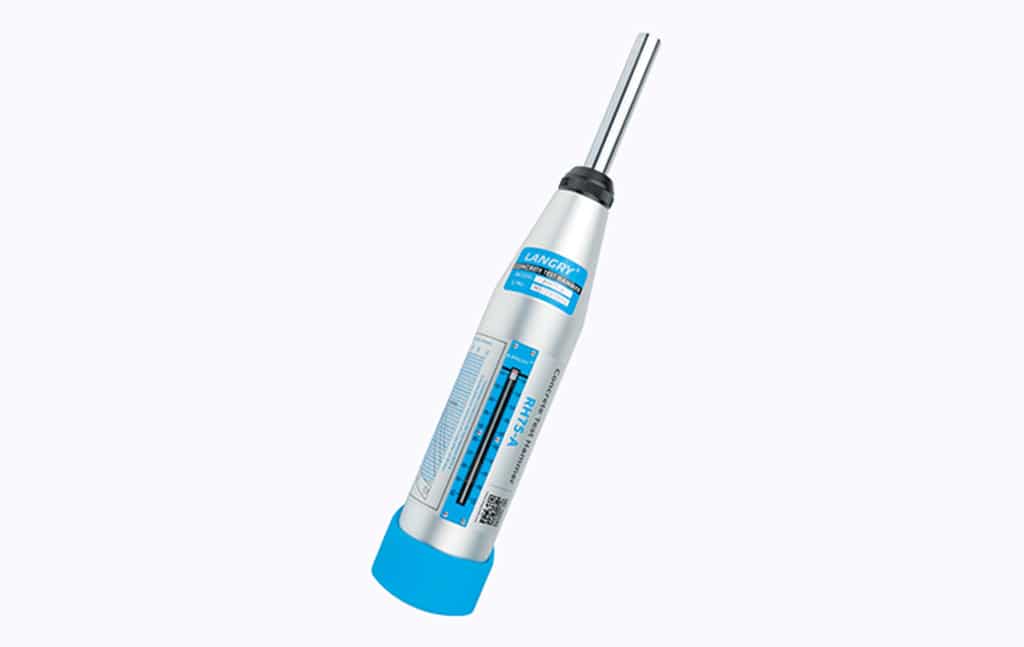

RH75-A Concrete Test Hammer  |
RH450-A Concrete Test Hammer  |
RH550-A Concrete Test Hammer  |
|---|---|---|---|---|---|---|
|
LED Display |
— — |
● |
— — |
— — |
— — |
— — |
|
Screen dot matrix |
— — |
256 x 64 |
— — |
— — |
— — |
— — |
|
Net weight |
1 KG |
1.2 KG |
0.78KG |
0.82KG |
1.7KG |
1.28KG |
|
PC Software |
— — |
● |
— — |
— — |
— — |
— — |
|
Bluetooth |
— — |
● |
— — |
— — |
— — |
— — |
|
Battery Power |
— — |
● |
— — |
— — |
— — |
— — |
|
Impact Energy |
2.207 J |
2.207 J |
0.196 J |
0.735 J |
4.500J |
5.500J |
|
Calibration value of testing anvil |
80±2 |
80±2 |
74±2 |
74±2 |
88±2 |
83±1 |
|
Compressive strength range |
10-70N/mm² |
10-70N/mm² |
2-15N/mm² |
10-70N/mm² |
C50-C100 |
C60-C80 |
Improve Your Testing Standards with LANGRY's Rebound Hammer Tester
Invest in Langry’s rebound hammer tester today and experience unparalleled quality in your testing processes.
OEM/ODM Capabilities of LANGRY NDT
Go beyond the ordinary with LANGRY’s comprehensive OEM and ODM services for NDT Equipment. We empower you to customize every aspect of our products, from the inside out.
-
Integrate your logo seamlessly onto the front-of-box label, nameplate, and user manual. Simply send us your logo file, and we'll handle the rest.
-
Ensure everything meets your expectations. We'll send you a sample rebound hammer customized with your branding for approval before production begins.
Contact LANGRY today to explore the possibilities and receive a personalized quote. We’re here to turn your vision into a reality.
Frequently Asked Questions
What is the range of compressive strength tested by LANGRY's rebound hammer Tester?
LANGRY‘s rebound hammers are capable of testing the compressive strength of ordinary concrete within the range of 10 to 100 N/mm² (1’450 to 14’504 psi).
How do I use LANGRY's Schmidt hammers for testing?
To use LANGRY ‘s Schmidt hammers, simply hold the hammer perpendicular to the surface being tested, press the plunger against the concrete, and release. The rebound value displayed on the hammer corresponds to the compressive strength of the concrete.
Can these LANGRY's Hammer tools be used for testing other materials besides concrete?
LANGRY‘s rebound hammers are mainly designed for testing concrete. But they can also be used to assess the hardness of other materials such as rock and masonry. They can provide valuable insights into the structural integrity of these materials.
How often should LANGRY's Swiss hammer be calibrated?
It is best to calibrate LANGRY’s Swiss Hammer regularly. This ensures accurate and reliable measurements. Calibration frequency depends on factors such as usage frequency and environmental conditions. Usually, an annual calibration is sufficient for most applications.
Frequently Asked Questions
What is a Testing Anvil Calibration Tool?
A Testing Anvil Calibration Tool is a precision instrument used to calibrate rebound hammers, ensuring accurate and consistent testing results in various applications such as construction, geotechnical engineering, and materials testing.
How does a Testing Anvil Calibration Tool work?
The Testing Anvil Calibration Tool is placed on a rigid horizontal surface, and the rebound hammer is used to conduct vertical or horizontal rebound tests on its surface. The calibration value of the rebound hammer is then adjusted based on the results obtained from the anvil.
Why is calibration important for rebound hammers?
Calibration is essential to ensure the accuracy and reliability of rebound hammers in assessing the compressive strength of concrete and other materials. Proper calibration guarantees consistent and trustworthy testing results, vital for quality control and safety in construction and materials testing.
How often should a Testing Anvil Calibration Tool be replaced?
The lifespan of a Testing Anvil Calibration Tool depends on factors such as usage frequency and maintenance practices. Generally, these tools are durable and can be used for an extended period. However, it is recommended to monitor the condition of the anvil core and body and replace them if signs of wear or damage are observed to maintain calibration accuracy.
