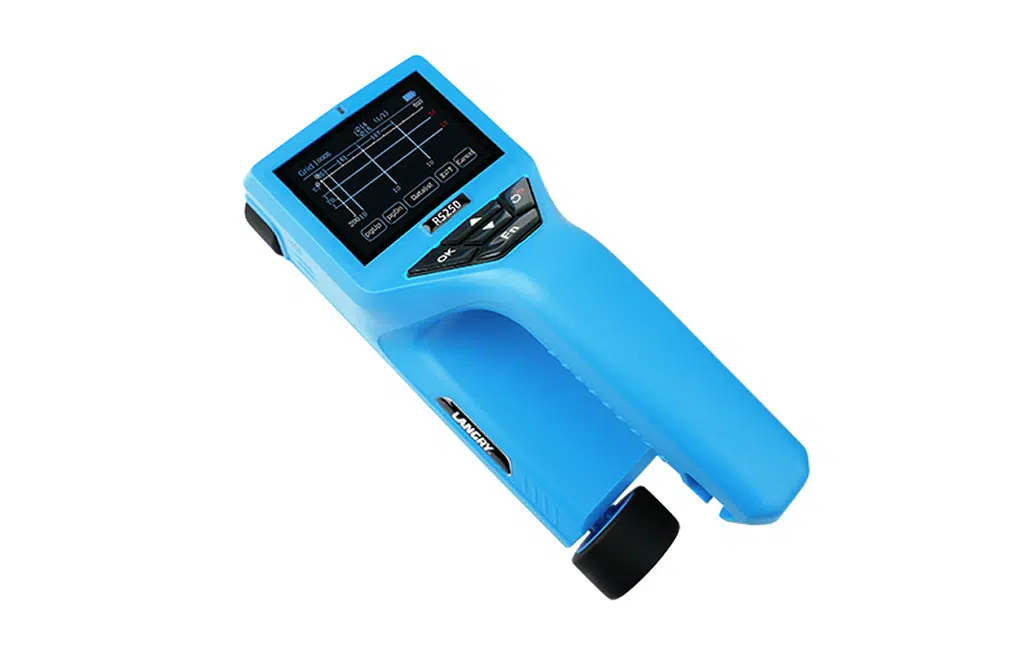

Rebar Detectors for Accurate Installation of Reinforcement Bars
This tool detects the position, distribution, and direction of rebar. It also measures the thickness of the concrete cover and estimates the diameter of the rebar.
Introducing Our Rebar Detectors

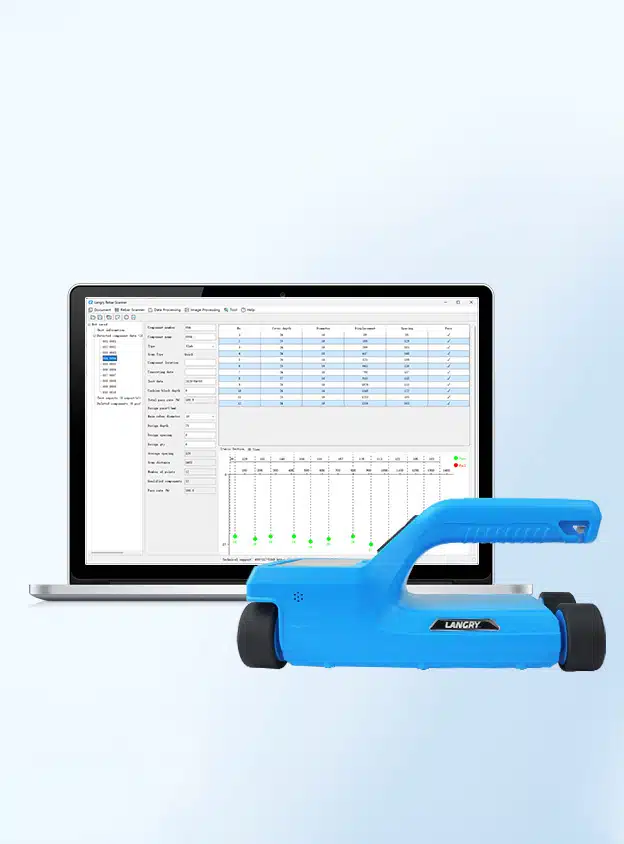

- Our detectors have sophisticated data analysis software. It runs on multiple operating systems. This allows easy import, analysis, and management of rebar detection data.
- Support various detection modes, including stirrup avoidance detection, concave detection, and convex detection. This provides versatility to meet the demands of different working conditions.
- Our detectors have a user-friendly interface and intuitive controls. They are easy to use for project detection staff.
Applications of Rebar Detectors
- General contractors rely on rebar detectors to measure rebar diameter and concrete cover. This ensures efficient construction processes and compliance with building codes and standards
- Civil engineering consultants use rebar detectors to evaluate the integrity of reinforced concrete elements. It enables informed decision-making and thorough structural assessments.
- Rebar locators ensure the structural integrity of bridges. They accurately locate reinforcement bars, assess their diameter, spacing, and concrete cover.
- During tunnel making, rebar detectors help identify and measure rebars in concrete walls and floors. This ensures safety and structural stability.
Product Comparison
Navigate the world of rebar finders effortlessly with our comprehensive product comparison. Compare accuracy, depth range, and versatility to find the perfect tool for your concrete scanning projects.
Product name |
LR-G300 Integrated Rebar Scanner  |
LR-G200 Integrated Rebar Scanner  |
LR-G100 Rebar Detector  |
LR-G150 Rebar Detector  |
|---|---|---|---|---|
|
Screen size |
3.5" |
3.2" |
5" |
5" |
|
Screen dot matrix |
640×480 |
320 x 240 |
854 x 480 |
854 x 480 |
|
Size of Host Machine |
210×95×120 |
235 x 120 x 130 |
200 x 125 x 50 |
200 x 125 x 50 |
|
Weight of Host Machine |
650g |
880g |
620 g |
620 g |
|
bluetooth |
Yes |
Yes |
No |
No |
|
Scanning Mode |
Quick/ Procedural /Grid / Fine / Complex/Wave |
Quick/ Profile / |
Quick |
Quick / Profile/ Grid |
|
Laser positioning |
Yes |
Yes |
No |
No |
|
Max range (mm)- 1st range |
1~120 |
1~105 |
6~90 |
6~90 |
|
Max range (mm)- 2nd range |
1~210 |
1~205 |
6~190 |
6~190 |
|
Max. allowable deviation on concrete cover depth - ±1（mm） |
1~80 |
1~80 |
6~80 |
6~80 |
|
Max. allowable deviation on concrete cover depth - ±2（mm） |
81~120 |
81~120 |
81~120 |
81~120 |
|
Max. allowable deviation on concrete cover depth - ±3（mm） |
121~160 |
121~160 |
121~140 |
121~140 |
|
Max. allowable deviation on concrete cover depth - ±4（mm） |
161~210 |
161~205 |
141~190 |
141~190 |
Uncover Structural Insights Today !
Don’t compromise on quality—invest in LANGRY’s rebar detectors for your next project.
OEM/ODM Capabilities of LANGRY NDT
Go beyond the ordinary with LANGRY’s comprehensive OEM and ODM services for NDT Equipment. We empower you to customize every aspect of our products, from the inside out.
-
Integrate your logo seamlessly onto the front-of-box label, nameplate, and user manual. Simply send us your logo file, and we'll handle the rest.
-
Ensure everything meets your expectations. We'll send you a sample rebound hammer customized with your branding for approval before production begins.
Contact LANGRY today to explore the possibilities and receive a personalized quote. We’re here to turn your vision into a reality.
Frequently Asked Questions
What is the purpose of a rebar detector?
This tool locates and assesses rebars in concrete structures. It checks the position, distribution, and condition of the rebars. It helps engineers and inspectors evaluate the integrity and quality of concrete elements.
How does this tool work?
A rebar locator typically uses electromagnetic or ground-penetrating radar technology to detect the presence of rebar within concrete. It emits signals that penetrate the concrete. It detects and analyzes the reflections from the rebar to find their position, depth, and spacing.
What types of structures can be inspected with these detectors?
Rebar detectors can inspect many concrete structures. These include buildings, bridges, tunnels, dams, and infrastructure elements like roadways and foundations.
How often should a rebar locator be calibrated?
The calibration frequency of rebar scanners depends on various factors. These include usage frequency, environmental conditions, and manufacturer recommendations. It is best to calibrate the device regularly, typically annually. This ensures accurate and reliable results.
Frequently Asked Questions
What is a Testing Anvil Calibration Tool?
A Testing Anvil Calibration Tool is a precision instrument used to calibrate rebound hammers, ensuring accurate and consistent testing results in various applications such as construction, geotechnical engineering, and materials testing.
How does a Testing Anvil Calibration Tool work?
The Testing Anvil Calibration Tool is placed on a rigid horizontal surface, and the rebound hammer is used to conduct vertical or horizontal rebound tests on its surface. The calibration value of the rebound hammer is then adjusted based on the results obtained from the anvil.
Why is calibration important for rebound hammers?
Calibration is essential to ensure the accuracy and reliability of rebound hammers in assessing the compressive strength of concrete and other materials. Proper calibration guarantees consistent and trustworthy testing results, vital for quality control and safety in construction and materials testing.
How often should a Testing Anvil Calibration Tool be replaced?
The lifespan of a Testing Anvil Calibration Tool depends on factors such as usage frequency and maintenance practices. Generally, these tools are durable and can be used for an extended period. However, it is recommended to monitor the condition of the anvil core and body and replace them if signs of wear or damage are observed to maintain calibration accuracy.
