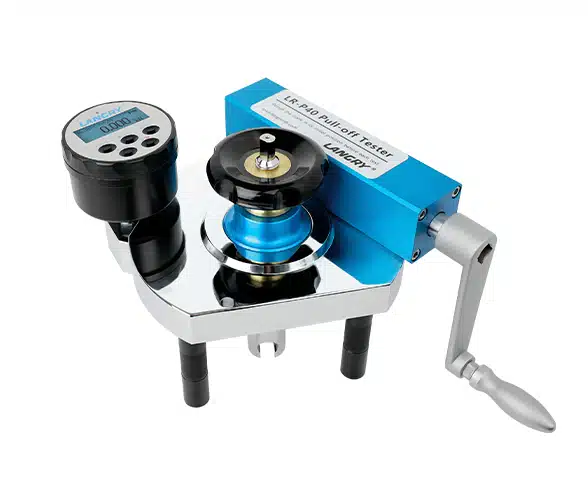

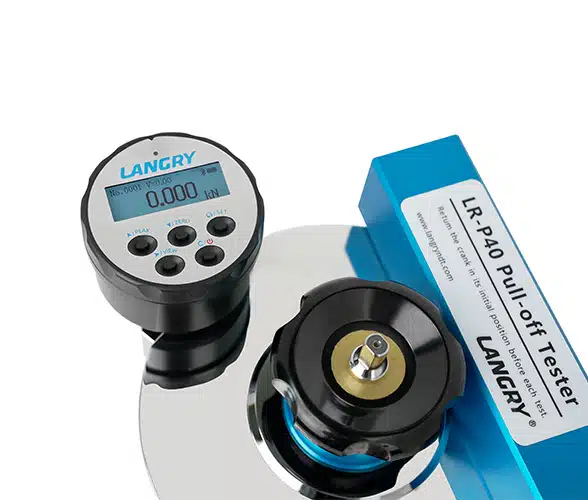

Pull-off Tester LR-P40
This tester adopts an integrated design, combining the hydraulic system and digital pressure display into one unit, ensuring high stability and portability, and the entire machine is made of high-strength aluminum alloy material.
- High-accuracy adhesion strength measurement.
- Robust and portable design.
- Easy-to-read digital display.
Applications :
Widely used in construction, manufacturing, and quality control, the Pull-off Tester LR-P40 evaluates tile adhesive strength, ensuring compliance with industry standards and enhancing material durability.
CTN DIM: 258×258×430mm
CTN DIM: 345×115×260mm
G.W.: 20.1kg
G.W.: 3.1kg
CTN DIM: 345×115×260mm

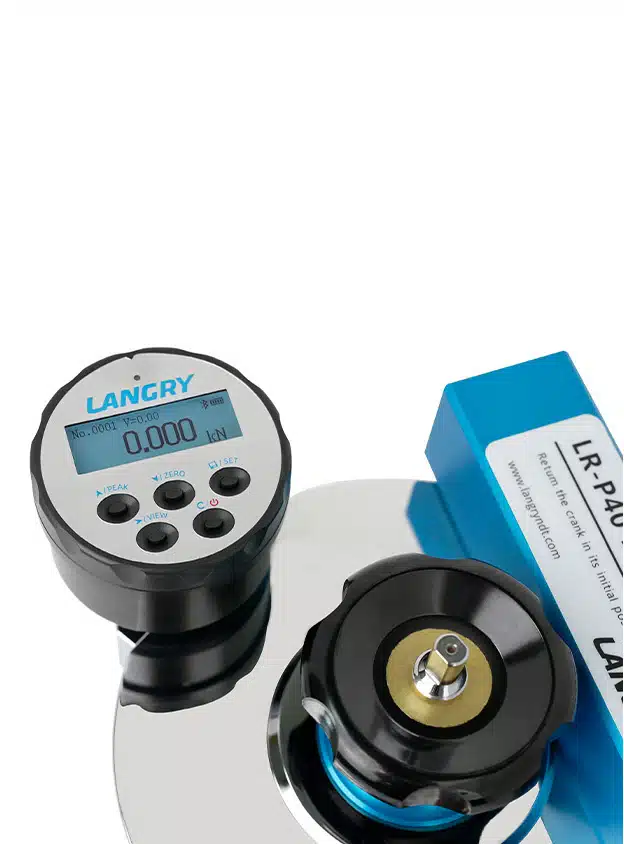

About the Product
Uncover our Pull-off Tester LR-P40 in detail. Each component is meticulously crafted to ensure unmatched performance and lasting durability.
Product Specifications Overview
Name |
Specifications |
|---|---|
| Display mode | kN |
| Stroke of hydraulic cylinder | 8mm |
| Measuring range
|
0-40.000kN |
| Resolution | 0.001kN |
| Measuring accuracy | ±1%(20% to 100% of the full range) |
| Peak hold |
YES |
| Data store | 500 or more |
| Liquid crystal lighting | YES |
| The numerical correction |
High detection accuracy |
| Power supply | 3.7V lithium battery |
| Automatic shutdown |
YES |
Product Features
- Adopts the integrated design, which integrates an oil pressure system and digital pressure display.
- High stability and easy to carry.
- The whole machine is made of high-strength aluminum alloy, light and beautiful.
- Screw lead screw pressure design, no need to screw out in advance.
Standards
- ASTM C 1583
- ASTM C1857
- ASTM D 4541
- ASTM D 7234
- ASTM D 7522
- EN 1015-12
- EN 12004-2
- EN 1348
- EN 1542
- ISO 4624
- JGJ 110
- JGJ 126
- JGJ 144
- SIA 281/3
- ZTV-ING
- ГОСТ 22690
Pull-off Tester LR-P40
LR-P40 is suitable for on-site testing projects related to tensile strength, such as concrete strength testing (C10~C80) for new and existing buildings, and bonding strength testing of exterior wall decorative tiles. The instrument configuration can be used for the post-installation pull-out method and post-anchoring method to detect concrete strength. The principle of testing concrete compressive strength is to calculate the concrete strength by measuring the pull-out force of the anchor placed in the concrete. This instrument features a digital pressure display and automatic peak value retention function. During the testing process, data can be stored using the machine, making the operation simple.
Pull-off Tester
Pull-off method accessories
Post-anchoring method accessories
After-loading and pulling out method accessories
Charger
Instrument case
Playlist
1 Videos
Product Specifications Overview
Name |
Specifications |
|---|---|
| Hydraulic cylinder stroke | 10mm |
| Display mode | kN,MPa Can be set, adjustable |
| Measuring range | 0-10kN |
| Accuracy | 0.001kN |
| Peak hold | Yes |
| Data storage | More than 500 |
| Accuracy grade | ±0.5%(F.S) |
| Weight | 3kg |
Product Features
- Peak holding function. (Test)
- Manual/automatic storage and deletion of measurement data (500 pieces).
- High-precision S-type force sensor.
- Calibrate 10 segment broken line correction or full-scale calibration mode.
Description
The Langry Pull-off Tester LR-P10 offers comprehensive testing capabilities for various construction applications. Whether assessing the pull-off force of thermal insulation materials, bonding strength of wall insulation, or tapestry brick adhesion, this device delivers precise results. With an integrated design and customizable display options, including pressure measurement in kN or MPa, it ensures convenient operation and accurate readings. Equipped with peak hold functionality and ample data storage capacity, the LR-P10 is a reliable companion for construction professionals seeking efficiency and accuracy in their testing processes.
Order Pull-off Testers in Bulk Now
Seize the opportunity to stock up and save on bulk orders of quality Pull-off Testers.
OEM & ODM Facilities
Go beyond the ordinary with LANGRY’s comprehensive OEM and ODM services for NDT Equipment. We empower you to customize every aspect of our products, from the inside out.
- Integrate your logo seamlessly onto the front-of-box label, nameplate, and user manual. Simply send us your logo file, and we'll handle the rest.
- Ensure everything meets your expectations. We'll send you a sample rebound hammer customized with your branding for approval before production begins.
Contact LANGRY today to explore the possibilities and receive a personalized quote. We’re here to turn your vision into a reality.
Frequently Asked Questions
Do you provide instructions or tutorial on how to use the equipment for the pull out test?
Yes, you can check our Video, find the product model you need, there are video tutorials, if you do not understand, you can also contact us, we have professional technicians.
What are the sizes of test blocks configured respectively for LR-P6,LR-P40,LR-PA10,LR-P10?
√ means standard configuration，+ means Optional (optional needs specific consultation)，– means None
Block Size |
LR-P6 |
LR-P40 |
LR-PA10 |
LR-P10 |
|---|---|---|---|---|
| 40*40 | √ | - | √ | - |
| 45*95 | √ | - | √ | - |
| 100*100 | + | - | √ | - |
| Φ20 | - | - | √ | - |
| Φ50 | - | √ | √ | √ |
| Rivet Pulling Tool | - | - | √ | √ |
What is the Minimum Order Quantity (MOQ) for a product?
Our Minimum Order Quantity (MOQ) is deliberately set at a low level to provide accessibility and flexibility in your purchasing experience. This allows you to procure the quantity that best suits your needs without overcommitting to large volumes. We aim to empower our customers with the freedom to order according to their specific requirements and preferences.
How long is the lead time for delivery?
Our lead time for delivery ranges from 7 to 15 days. We prioritize quick and efficient service to ensure your order reaches you promptly. Rest assured, our logistics team works diligently to expedite the delivery process while maintaining the highest standards of quality and reliability. Contact us for any specific delivery inquiries or urgent requirements.
What makes LANGRY's products competitive?
Our products excel due to their competitive pricing, superior quality, and direct factory sourcing. By offering cost-effective solutions without compromising on quality and leveraging direct factory relationships, we ensure our products meet the highest standards while remaining accessible and reliable in the market.
Can I request customization for the product's specifications?
Absolutely, we offer customization options tailored to your specific needs. Whether it’s adjusting specifications or creating bespoke solutions, our team is dedicated to accommodating your requirements. Get in touch with us to discuss your customization needs further, and we’ll work closely with you to ensure the product meets your exact specifications and expectations.
What industries does your NDT equipment cater to?
Our NDT equipment is used in a wide range of industries, including aerospace, automotive, construction, manufacturing, oil and gas, power generation, and more. If you’re unsure whether our solutions are suitable for your industry, feel free to contact us, and we’ll be happy to discuss your specific needs.
