P16
Pull-off Tester
-
High-accuracy adhesion strength measurement.
-
Robust and portable design.
-
Easy-to-read digital display.
Applications :
Widely used in construction, manufacturing, and quality control, the P16 Pull-off Tester evaluates tile adhesive strength, ensuring compliance with industry standards and enhancing material durability.
CTN DIM: 258×258×430mm
CTN DIM: 345×115×260mm
G.W.: 3.1kg
CTN DIM: 345×115×260mm
About the Product
Product Specifications Overview
|
Name
|
Specifications
|
|---|---|
|
Display mode |
kN |
|
Stroke of hydraulic cylinder |
5mm |
|
Measuring range |
1.6-16kN |
|
Resolution |
0.001kN（0.01MPa, 1psi） |
|
Measuring accuracy |
EN ISO 7500-1 Class 1 |
|
Peak hold |
YES |
|
Data store |
4000 |
|
Liquid crystal lighting |
YES |
|
The numerical correction |
High detection accuracy |
|
Power supply |
2 “AAA” dry batteries |
|
Automatic shutdown |
YES |
Product Features
-
Adopts the integrated design, which integrates an oil pressure system and digital pressure display.
-
High stability and easy to carry.
-
The whole machine is made of high-strength aluminum alloy, light and beautiful.
-
Screw lead screw pressure design, no need to screw out in advance.
Standards
-
ASTM C 1583
-
ASTM C1857
-
ASTM D 4541
-
ASTM D 7234
-
ASTM D 7522
-
EN 1015-12
-
EN 12004-2
-
EN 1348
-
EN 1542
-
ISO 4624
-
JGJ 110
-
JGJ 126
-
JGJ 144
-
SIA 281/3
-
ZTV-ING
-
ГОСТ 22690

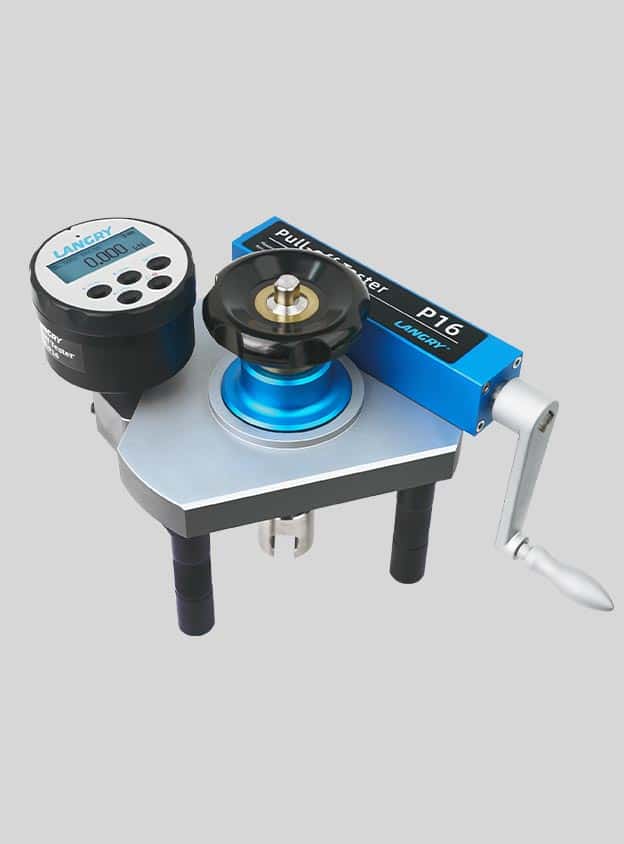

P16 Pull-Off Tester
P16 is suitable for on-site testing projects related totensile strength,
and bonding strength testing of exterior wall decorative tiles. This instrument
features a digital pressuredisplay and automatic peak value retention function.
Duringthe testing process, data can be storedusing the machine,making the
operation simple.

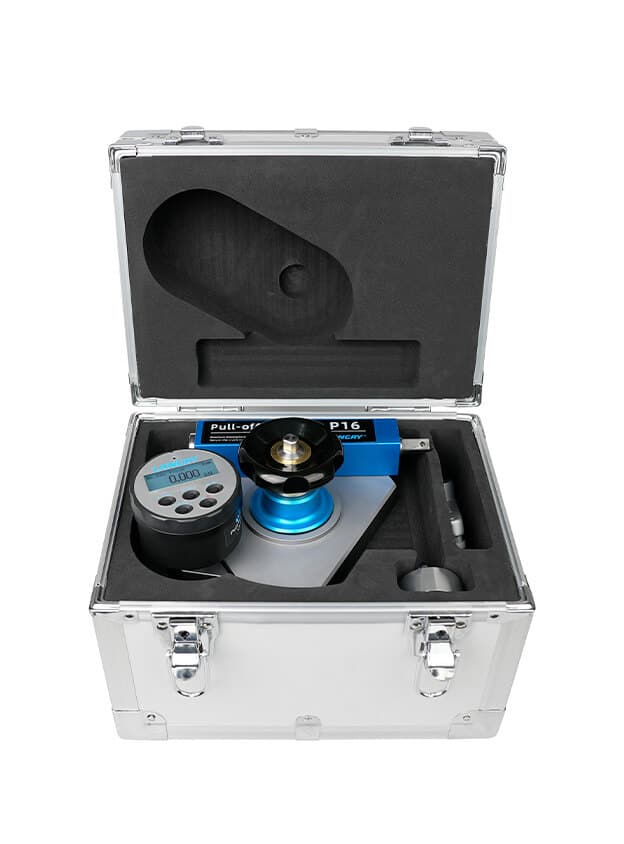

Pull-off Tester
ф50 Text disc aluminum
Instrument case
Order Pull-off Testers in Bulk Now
OEM & ODM Facilities
-
Integrate your logo seamlessly onto the front-of-box label, nameplate, and user manual. Simply send us your logo file, and we'll handle the rest.
-
Ensure everything meets your expectations. We'll send you a sample rebound hammer customized with your branding for approval before production begins.
Frequently Asked Questions
Yes, you can check our Video, find the product model you need, there are video tutorials, if you do not understand, you can also contact us, we have professional technicians.
√ means standard configuration，+ means Optional (optional needs specific consultation)，– means None
|
Block Size
|
P6
|
LR-P40
|
PA10
|
P10
|
|---|---|---|---|---|
|
40*40 |
√ |
- |
√ |
- |
|
45*95 |
√ |
- |
√ |
- |
|
100*100 |
+ |
- |
√ |
- |
|
Φ20 |
- |
- |
√ |
- |
|
Φ50 |
- |
√ |
√ |
√ |
|
Rivet Pulling Tool |
- |
- |
√ |
√ |
Our Minimum Order Quantity (MOQ) is deliberately set at a low level to provide accessibility and flexibility in your purchasing experience. This allows you to procure the quantity that best suits your needs without overcommitting to large volumes. We aim to empower our customers with the freedom to order according to their specific requirements and preferences.
Our lead time for delivery ranges from 7 to 15 days. We prioritize quick and efficient service to ensure your order reaches you promptly. Rest assured, our logistics team works diligently to expedite the delivery process while maintaining the highest standards of quality and reliability. Contact us for any specific delivery inquiries or urgent requirements.
Our products excel due to their competitive pricing, superior quality, and direct factory sourcing. By offering cost-effective solutions without compromising on quality and leveraging direct factory relationships, we ensure our products meet the highest standards while remaining accessible and reliable in the market.
Absolutely, we offer customization options tailored to your specific needs. Whether it’s adjusting specifications or creating bespoke solutions, our team is dedicated to accommodating your requirements. Get in touch with us to discuss your customization needs further, and we’ll work closely with you to ensure the product meets your exact specifications and expectations.
Our NDT equipment is used in a wide range of industries, including aerospace, automotive, construction, manufacturing, oil and gas, power generation, and more. If you’re unsure whether our solutions are suitable for your industry, feel free to contact us, and we’ll be happy to discuss your specific needs.
