Pull-off Tester LR-P10

The high-precision rivet pull-off tester is a new type of testing instrument developed by Langry. It is suitable for testing the pull-out force of rivets for fixing thermal insulation materials in construction engineering.
  • Integrated design with embedded measurement.

  • Customizable pressure measurement and display.

  • Clear LCD for easy data reading.

Applications :

Ideal for construction engineering, the Langry Pull-off Tester LR-P10 evaluates the pull-off force of plutonium nails and the bonding strength of wall insulation. It also assesses exterior wall finishes and various coatings, ensuring materials meet performance standards.

CTN DIM: 258×258×430mm
CTN DIM: 345×115×260mm
G.W.: 20.1kg

G.W.: 3.1kg

CTN DIM: 345×115×260mm

About the Product

Uncover our Pull-Off Tester LR-P10 in detail. Each component is meticulously crafted to ensure unmatched performance and lasting durability.
Edit Content

Product Specifications Overview

Name
Specifications

Hydraulic cylinder stroke

65mm

Display mode

kN、MPa

Measuring range

0-10kN

Accuracy

0.001kN

Peak hold

Yes

Data storage

More than 500

Accuracy grade

±0.5%(F.S)

Host weight

3.2kg

Edit Content

Product Features

  • Peak holding function.

  • Manual/automatic storage and deletion of measurement data (500 pieces).

  • High-precision S-type force sensor.

  • Calibrate 10 segment broken line correction or full-scale calibration mode.

Standards

  • ASTM C 1583

  • ASTM C1857

  • ASTM D 4541

  • ASTM D 7234

  • ASTM D 7522

  • EN 1015-12

  • EN 12004-2

  • EN 1348

  • EN 1542

  • ISO 4624

  • JGJ 110

  • JGJ 126

  • JGJ 144

  • SIA 281/3

  • ZTV-ING

  • ГОСТ 22690

Edit Content

Pull-off Tester LR-P10

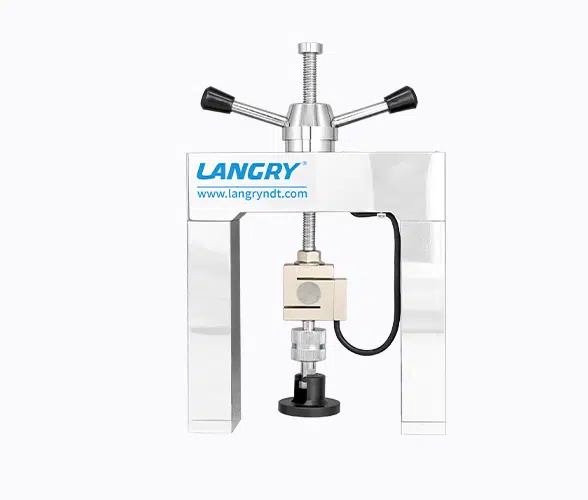

The tester adopts a mechanical and electrical integration design, with the entire set of instruments forming a single unit. It consists of a handle, sensor, screw, reaction support, and other mechanical parts, forming a “gate” structure. The measurement display circuit is embedded in the instrument for direct data observation. The tester features light weight, easy handling, and convenient operation.

The intelligent high-precision carbon fiber bonding strength tester is another new type of testing instrument developed by Langry. It is suitable for testing the tensile bonding strength between carbon fiber sheets and concrete in civil engineering structures. It is an ideal testing device for the design, construction, and acceptance of bonded carbon fiber sheet reinforcement and repair of concrete structures.
Edit Content

One tester host

Charger

Cutting drill bit

Hook type pull-out test block

Rivet pull-out test block

Instrument case

Edit Content

Download Materials

Unlock the full potential of our NDT solutions by downloading our innovative software and instruction materials today.
Edit Content

Playlist

1 Videos
Edit Content

Product Specifications Overview

Name
Specifications

Hydraulic cylinder stroke

10mm

Display mode

kN,MPa Can be set, adjustable

Measuring range

0-10kN

Accuracy

0.001kN

Peak hold

Yes

Data storage

More than 500

Accuracy grade

±0.5%(F.S)

Weight

3kg

Edit Content

Product Features

Edit Content

Description

The Langry Pull-off Tester LR-P10 offers comprehensive testing capabilities for various construction applications. Whether assessing the pull-off force of thermal insulation materials, bonding strength of wall insulation, or tapestry brick adhesion, this device delivers precise results. With an integrated design and customizable display options, including pressure measurement in kN or MPa, it ensures convenient operation and accurate readings. Equipped with peak hold functionality and ample data storage capacity, the LR-P10 is a reliable companion for construction professionals seeking efficiency and accuracy in their testing processes.
Notebook

Notebook

Capture structured and unstructured lab work with the first cloud-based notebook built for biotech.
Learn more
Studies

Studies

Efficiently oversee in vivo studies using modern software specifically designed for data collection, collaboration, and analysis.
Learn more
Inventory

Inventory

Outgrid sample management solution gives you lab inventory management that’s intelligently connected with your R&D data.
Learn more
Insights

Insights

Create and distribute dashboards and reports, monitor metrics, and gain insights from your data with Insights.
Learn more

Order Pull-off Testers in Bulk Now

Seize the opportunity to stock up and save on bulk orders of quality Pull-Off Testers.

OEM & ODM Facilities

Go beyond the ordinary with LANGRY’s comprehensive OEM and ODM services for NDT Equipment. We empower you to customize every aspect of our products, from the inside out.
  • Integrate your logo seamlessly onto the front-of-box label, nameplate, and user manual. Simply send us your logo file, and we'll handle the rest.

  • Ensure everything meets your expectations. We'll send you a sample rebound hammer customized with your branding for approval before production begins.

Contact LANGRY today to explore the possibilities and receive a personalized quote. We’re here to turn your vision into a reality.

Frequently Asked Questions

Do you provide instructions or tutorial on how to use the equipment for the pull out test?
Yes, you can check our Video, find the product model you need, there are video tutorials, if you do not understand, you can also contact us, we have professional technicians.
What are the sizes of test blocks configured respectively for LR-P6,LR-P40,LR-PA10,LR-P10?

  means standard configuration,+ means Optional (optional needs specific consultation), means None

Block Size
LR-P6
LR-P40
LR-PA10
LR-P10
40*40



-



-

45*95



-



-

100*100

+

-



-

Φ20

-

-



-

Φ50

-







Rivet Pulling Tool

-

-





What is the Minimum Order Quantity (MOQ) for a product?
Our Minimum Order Quantity (MOQ) is deliberately set at a low level to provide accessibility and flexibility in your purchasing experience. This allows you to procure the quantity that best suits your needs without overcommitting to large volumes. We aim to empower our customers with the freedom to order according to their specific requirements and preferences.
How long is the lead time for delivery?
Our lead time for delivery ranges from 7 to 15 days. We prioritize quick and efficient service to ensure your order reaches you promptly. Rest assured, our logistics team works diligently to expedite the delivery process while maintaining the highest standards of quality and reliability. Contact us for any specific delivery inquiries or urgent requirements.
What makes LANGRY's products competitive?
Our products excel due to their competitive pricing, superior quality, and direct factory sourcing. By offering cost-effective solutions without compromising on quality and leveraging direct factory relationships, we ensure our products meet the highest standards while remaining accessible and reliable in the market.
Can I request customization for the product's specifications?
Absolutely, we offer customization options tailored to your specific needs. Whether it’s adjusting specifications or creating bespoke solutions, our team is dedicated to accommodating your requirements. Get in touch with us to discuss your customization needs further, and we’ll work closely with you to ensure the product meets your exact specifications and expectations.
What industries does your NDT equipment cater to?
Our NDT equipment is used in a wide range of industries, including aerospace, automotive, construction, manufacturing, oil and gas, power generation, and more. If you’re unsure whether our solutions are suitable for your industry, feel free to contact us, and we’ll be happy to discuss your specific needs.
