LR-50T/100T Anchor Bolt Pull-out Tester

Enhance testing precision with the Anchor Bolt Pull-out Tester R-50T/100T. It is versatile, reliable, and perfect for assessing anchoring force in various components.
  • High capacity options: 50T, 100T.

  • Accurate force measurement for precise testing.

  • Robust construction ensures durability in demanding environments.

Applications :

The LANGRY LR-50T/100T Anchor Bolt Pull-out Tester is indispensable for evaluating bolt anchoring strength in heavy-duty construction projects, ensuring structural stability and safety compliance with confidence.
CTN DIM: 258×258×430mm
CTN DIM: 345×115×260mm
G.W.: 20.1kg

G.W.: 3.1kg

CTN DIM: 345×115×260mm

About the Product

Uncover our LR-50T/100T Anchor Bolt Pull-Out Testers in detail. Each component is meticulously crafted to ensure unmatched performance and lasting durability.

Edit Content

Product Specifications Overview

Model
Cylinder center hole
Cylinder stroke
Measurement range
Cylinder weight
Common anchorage
Pull rod
Converter

LR-50T

60mm
120mm
0-500kN
25kg
Φ6-Φ40
M39
M6-36
LR-100T
86mm
150mm
0-1000kN
58kg
Φ25-Φ50
M45
M20-42
Edit Content

Product Features

  • The thickened main body of high-strength steel with high-pressure resistance and no deformation

  • Precision machining of oil cylinders and one-way valves to maintain constant pressure without oil leakage

  • Memory for 500 data records, with dot matrix LCD illumination function

  • Zero tracking, peak hold, and automatic shutdown

  • Automatic data correction to improve instrument accuracy

  • Wide LCD display for easy data reading

  • Ultra-low power consumption design, with a continuous working time of over 200 hours

Edit Content

Description

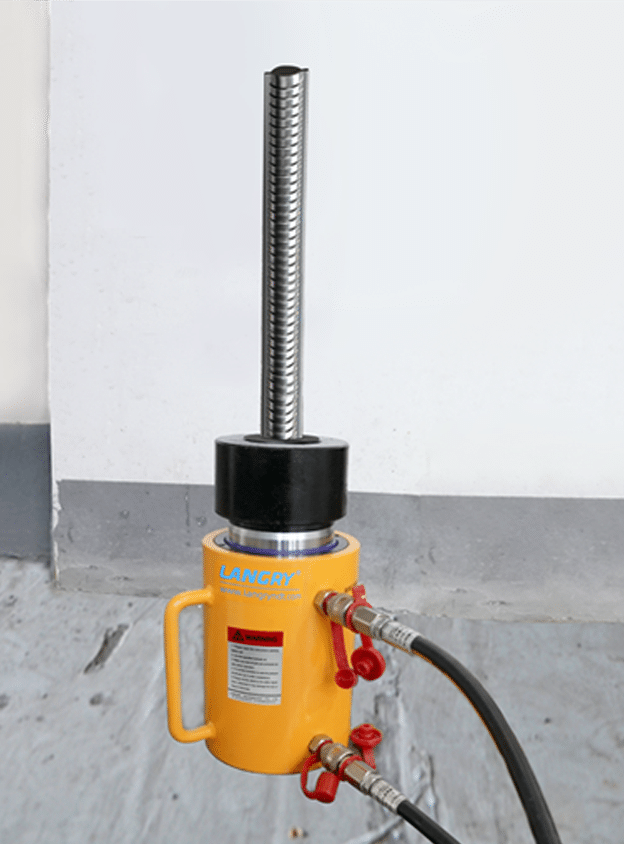

The LR series anchor pull-out tester is suitable for anchor force testing of anchor rods, steel bars, expansion bolts, etc., and can also be used for on-site pull-out force testing of glass curtain walls (tests). It is one of the essential instruments for quality inspection of anchor rod construction projects.

LR-10T/20T/30T

LR-50T/100T

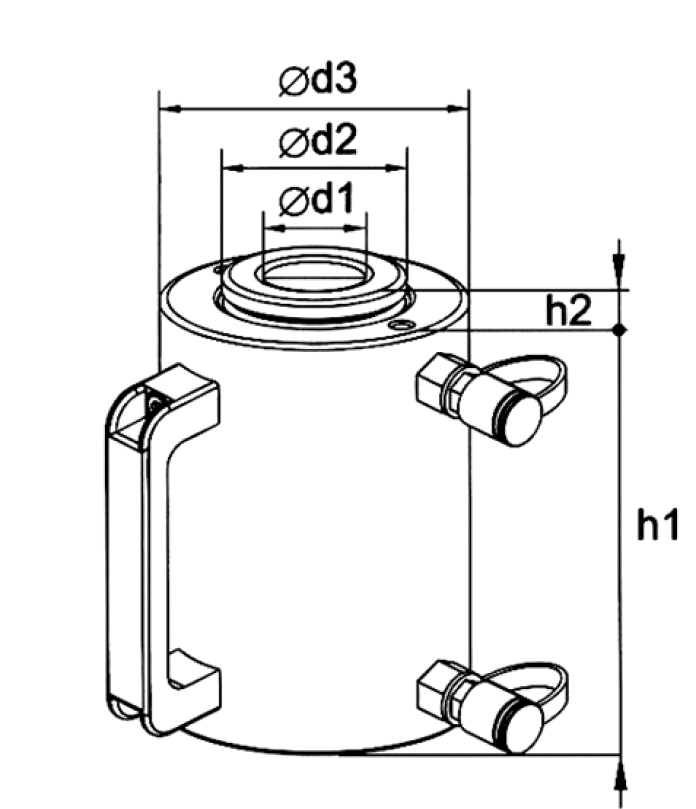

SPECIFICATIONS 100kN 200kN 300kN 500kN 1000kN
Ф d1 27mm 35mm 45mm 60mm 85mm
Ф d2 49mm 65mm 74mm 104mm 148mm
Ф d3 81mm 116mm 125mm 160mm 220mm
h1 180mm 210mm 210mm 220mm 270mm
h2 11mm 11mm 11mm 11mm 22mm
Edit Content

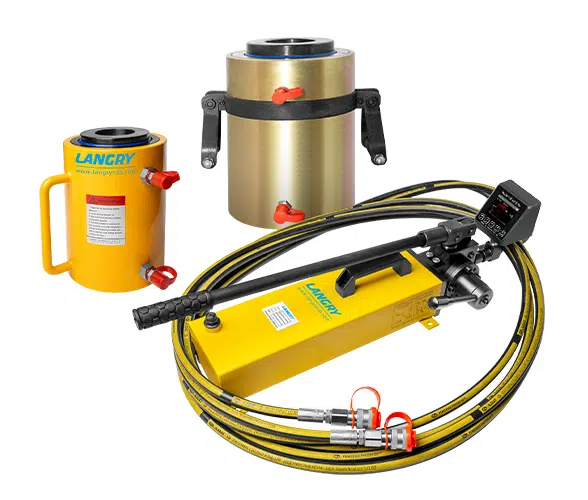

components

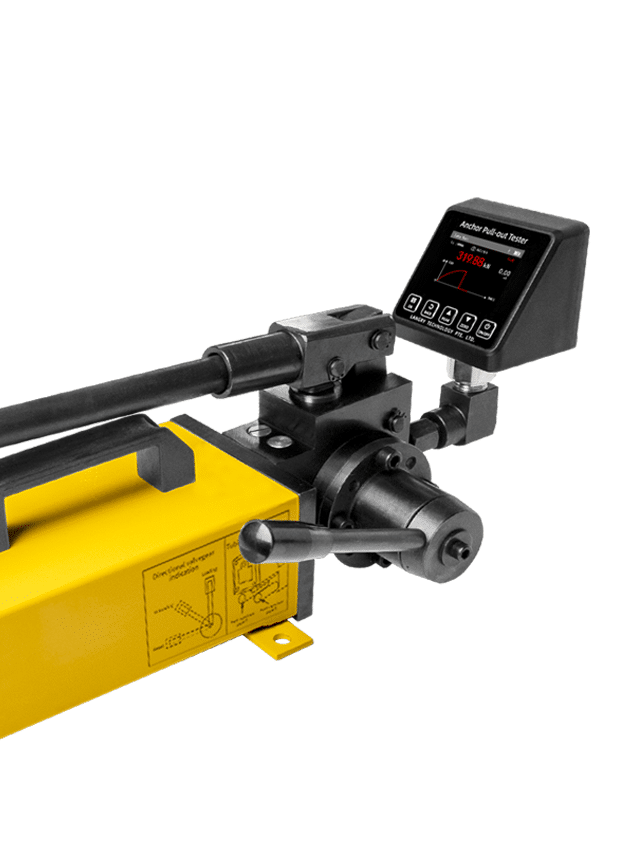

Hand pump

Hydraulic cylinder

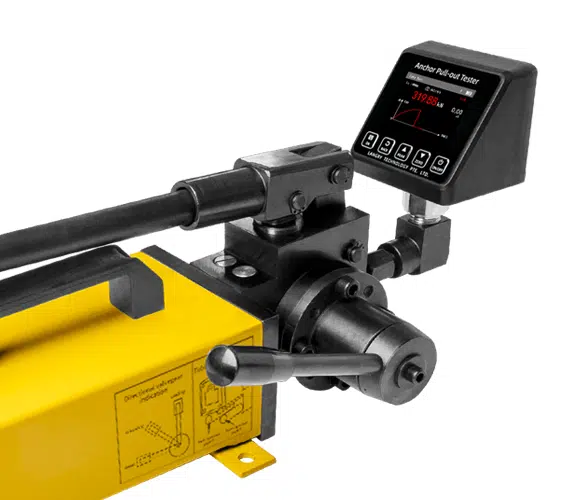

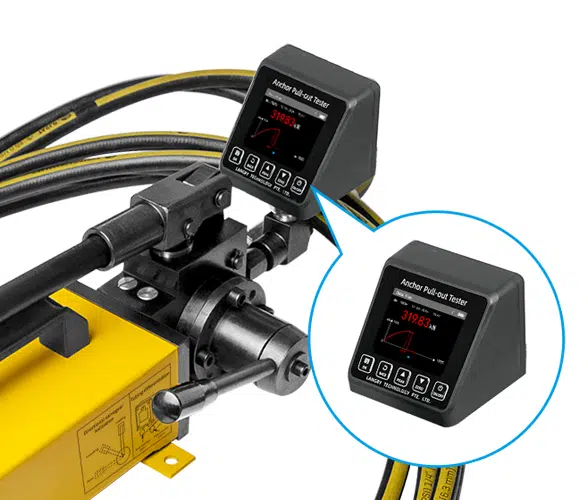

Digital pressure gauge

instrument case

Pull rod, Converter, Anchorage

Rebar products accessories

Specification (mm) : Φ 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 32, 36, 38, 40, 50.
16 species in total

Three-hole, multi-hole, double-hole

Common accessories for screw thread products such as expansion bolts and anchor bolts

Specification (mm) : M6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42.
16 species in total
Item 100kN 200kN 300kN 500kN 1000kN
Pull rod M1 18mm 24mm 30mm 39mm 45mm
h1 300mm 310mm 310mm 310mm 460mm
Фd1 26mm 33mm 43mm 50mm 63mm
Converter M2 6~20mm 6~24mm 6~30mm 6~36mm 20~42mm
Ф d2 26mm 33mm 33mm(6-18) 43mm(20-30) 63mm
33mm(6-18)
Anchorage Ф d3 50mm 68mm 68mm 74mm 125mm
Ф d4 18.5mm 24.5mm 31mm 40mm 46mm
h2 6mm 10mm 10mm 15mm 32mm
Edit Content

Download Materials

Unlock the full potential of our NDT solutions by downloading our innovative software and instruction materials today.
Edit Content

Playlist

1 Videos
Edit Content

Product Specifications Overview

Name
Specifications

Hydraulic cylinder stroke

10mm

Display mode

kN,MPa Can be set, adjustable

Measuring range

0-10kN

Accuracy

0.001kN

Peak hold

Yes

Data storage

More than 500

Accuracy grade

±0.5%(F.S)

Weight

3kg

Edit Content

Product Features

Edit Content

Description

The Langry Pull-off Tester LR-P10 offers comprehensive testing capabilities for various construction applications. Whether assessing the pull-off force of thermal insulation materials, bonding strength of wall insulation, or tapestry brick adhesion, this device delivers precise results. With an integrated design and customizable display options, including pressure measurement in kN or MPa, it ensures convenient operation and accurate readings. Equipped with peak hold functionality and ample data storage capacity, the LR-P10 is a reliable companion for construction professionals seeking efficiency and accuracy in their testing processes.
