APT 100/200/300
Anchor Pull-out Tester
The LANGRY Anchor Bolt Pull-out Tester is a versatile tool for testing the anchoring force of various components. It is ideal for on-site testing and quality inspections.
-
Versatile capacity options: 10T, 20T, 30T.
-
Precise force measurement for accurate testing.
-
The portable design facilitates on-site testing convenience.
Applications :
The LANGRY APT100/200/300 Anchor Pull-out Tester is crucial for assessing the anchoring strength of bolts in construction, ensuring structural integrity and safety compliance in various projects.
CTN DIM: 258×258×430mm
CTN DIM: 345×115×260mm
G.W.: 20.1kg
G.W.: 3.1kg
CTN DIM: 345×115×260mm
About The Product
Uncover our APT100/200/300 Anchor Pull-out Testers in detail. Each component is meticulously crafted to ensure unmatched performance and lasting durability.
Product Specifications Overview
|
Model
|
Cylinder center hole
|
Cylinder stroke
|
Measurement range
|
Cylinder weight
|
Common anchorage
|
Pull rod
|
Converter
|
Accuracy Level
|
|---|---|---|---|---|---|---|---|---|
|
APT100 |
27mm |
60mm |
0-100kN |
5.5kg |
Φ6-Φ20 |
M18 |
M6-20 |
EN ISO 7500-1 Class 1 |
|
APT200 |
35mm |
70mm |
0-200kN |
13kg |
Φ6-Φ25 |
M24 |
M6-22 |
EN ISO 7500-1 Class 1 |
|
APT300 |
45mm |
70mm |
0-300kN |
15kg |
Φ6-Φ32 |
M30 |
M6-27 |
EN ISO 7500-1 Class 1 |
Product Features
-
The thickened main body of high-strength steel with high-pressure resistance and no deformation
-

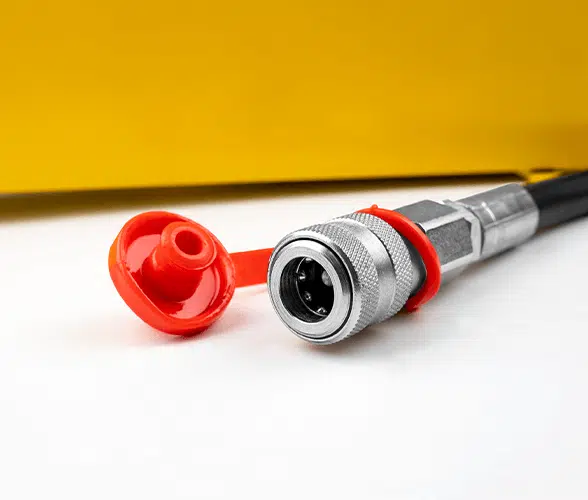

Precision machining of oil cylinders and one-way valves to maintain constant pressure without oil leakage
-

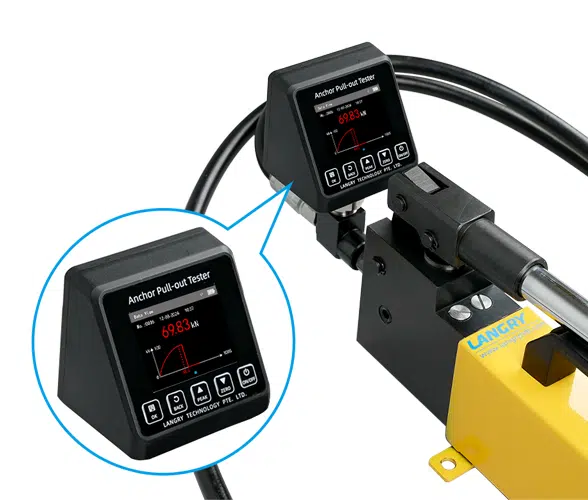

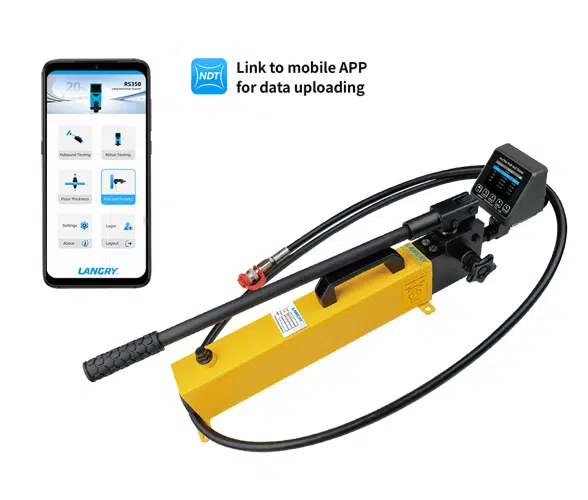

Memory for 500 data records, with dot matrix LCD illumination function
-
Zero tracking, peak hold, and automatic shutdown
-
Automatic data correction to improve instrument accuracy
-
Wide LCD display for easy data reading
-
Ultra-low power consumption design, with a continuous working time of over 200 hours
Description

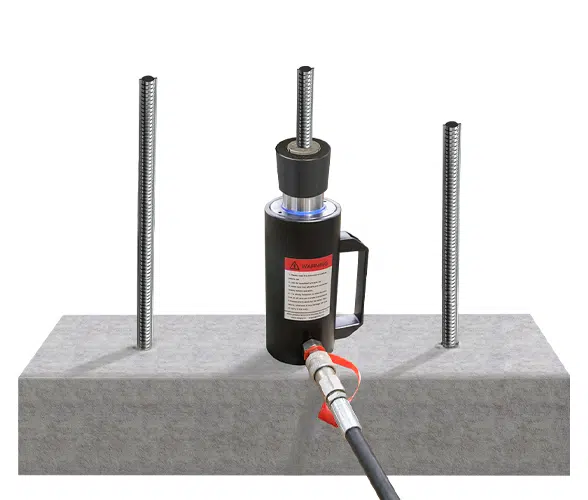

The APT series anchor pull-out tester is suitable for anchor force testing of anchor rods, steel bars, expansion bolts, etc., and can also be used for on-site pull-out force testing of glass curtain walls (tests). It is one of the essential instruments for quality inspection of anchor rod construction projects.
APT 100/200/300
| SPECIFICATIONS | 100kN | 200kN | 300kN | 500kN | 1000kN |
|---|---|---|---|---|---|

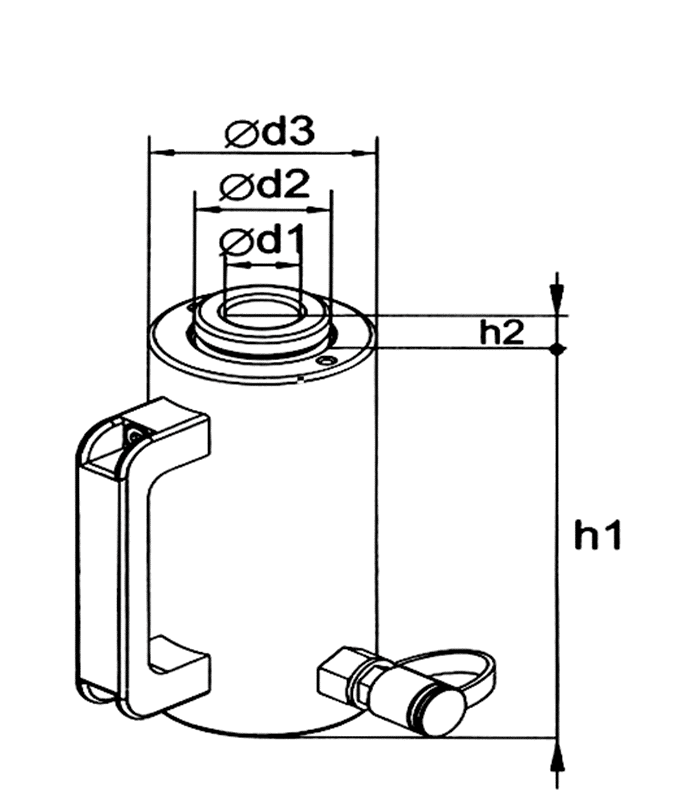

| Ф d1 | 27mm | 35mm | 45mm | 60mm | 85mm |
| Ф d2 | 49mm | 65mm | 74mm | 104mm | 148mm |
| Ф d3 | 81mm | 116mm | 125mm | 160mm | 220mm |
| h1 | 180mm | 210mm | 210mm | 220mm | 270mm |
| h2 | 11mm | 11mm | 11mm | 11mm | 22mm |

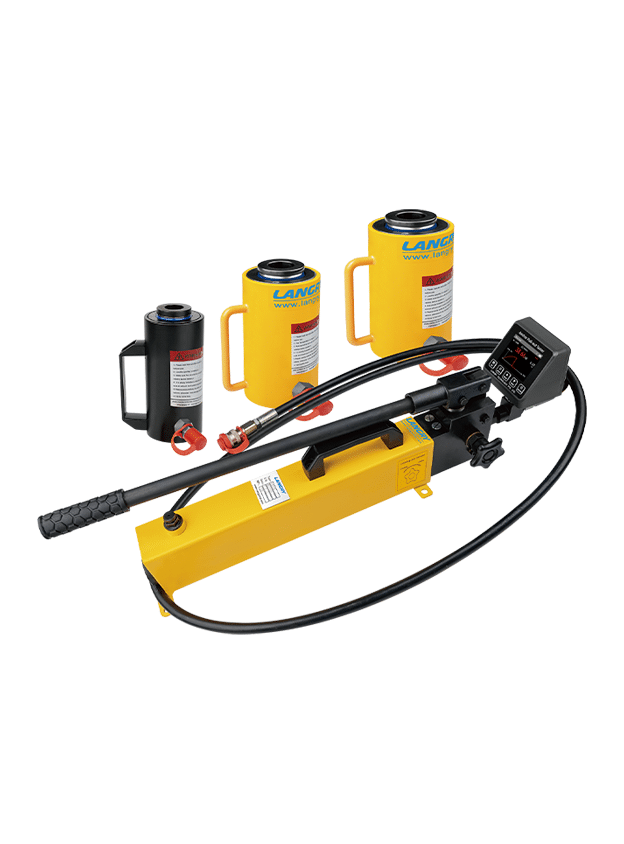

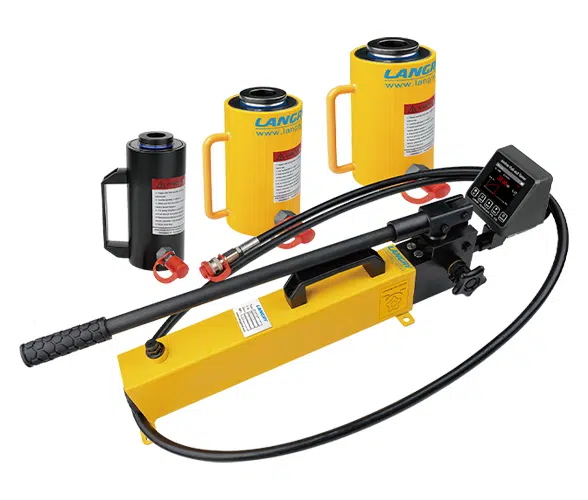

components
Hand pump
Hydraulic cylinder
Digital pressure gauge
instrument case
Pull rod, Converter, Anchorage
Rebar products accessories
Specification (mm) : Φ 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 32, 36, 38, 40, 50.
16 species in total
Three-hole, multi-hole, double-hole
Common accessories for screw thread products such as expansion bolts and anchor bolts
Specification (mm) : M6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42.
16 species in total
| Item | 100kN | 200kN | 300kN | 500kN | 1000kN | |
|---|---|---|---|---|---|---|
| Pull rod | M1 | 18mm | 24mm | 30mm | 39mm | 45mm |
| h1 | 300mm | 310mm | 310mm | 310mm | 460mm | |
| Фd1 | 26mm | 33mm | 43mm | 50mm | 63mm | |
| Converter | M2 | 6~20mm | 6~24mm | 6~30mm | 6~36mm | 20~42mm |
| Ф d2 | 26mm | 33mm | 33mm(6-18) | 43mm(20-30) | 63mm | |
| 33mm(6-18) | ||||||
| Anchorage | Ф d3 | 50mm | 68mm | 68mm | 74mm | 125mm |
| Ф d4 | 18.5mm | 24.5mm | 31mm | 40mm | 46mm | |
| h2 | 6mm | 10mm | 10mm | 15mm | 32mm | |
LR-FLO5
LR-FL20
LR-FL30
| Counterforce supporting ring model | Applicable Model | Counterforce supporting ring Inside diameter | Recommended scope of application | Weight (kg) |
|---|---|---|---|---|
| LR-FLO5 | APT50;P40 | 120mm | 0-50kN | 1.5 |
| LR-FL20 | APT100/200 | 250mm | 0-250kN | 9.5 |
| LR-FL30 | APT100/200/300 | 385mm | 0-500kN | 25 |
Playlist
1 Videos
0:16
Product Specifications Overview
|
Name
|
Specifications
|
|---|---|
|
Hydraulic cylinder stroke |
10mm |
|
Display mode |
kN,MPa Can be set, adjustable |
|
Measuring range |
0-10kN |
|
Accuracy |
0.001kN |
|
Peak hold |
Yes |
|
Data storage |
More than 500 |
|
Accuracy grade |
±0.5%(F.S) |
|
Weight |
3kg |
Product Features
- Peak holding function. (Test)
- Manual/automatic storage and deletion of measurement data (500 pieces).
- High-precision S-type force sensor.
- Calibrate 10 segment broken line correction or full-scale calibration mode.
Description
The Langry Pull-off Tester LR-P10 offers comprehensive testing capabilities for various construction applications. Whether assessing the pull-off force of thermal insulation materials, bonding strength of wall insulation, or tapestry brick adhesion, this device delivers precise results. With an integrated design and customizable display options, including pressure measurement in kN or MPa, it ensures convenient operation and accurate readings. Equipped with peak hold functionality and ample data storage capacity, the LR-P10 is a reliable companion for construction professionals seeking efficiency and accuracy in their testing processes.
Order Anchor Bolt Pull-out Testers in Bulk Now!
Seize the opportunity to stock up and save on bulk orders of quality Anchor Bolt Pull-Out Testers.
OEM & ODM Facilities
Go beyond the ordinary with LANGRY’s comprehensive OEM and ODM services for NDT Equipment. We empower you to customize every aspect of our products, from the inside out.
-
Integrate your logo seamlessly onto the front-of-box label, nameplate, and user manual. Simply send us your logo file, and we'll handle the rest.
-
Ensure everything meets your expectations. We'll send you a sample rebound hammer customized with your branding for approval before production begins.
Contact LANGRY today to explore the possibilities and receive a personalized quote. We’re here to turn your vision into a reality.
Frequently Asked Questions
Does anchor pulling instrument need to be calibrated?
Regular calibration is required. Instruments and equipment used for on-site inspections should be periodically verified by authorized metrology institutions. Recalibration is also necessary under the following circumstances:
- When readings become abnormal.
- After disassembly for inspection or replacement of parts.
What is the accuracy (reading and accuracy) of the instrument?
| Range | 1/2/3/4/5 tons | 10/20/30/50 tons | 100 tons |
|---|---|---|---|
| Measuring Range | 0-10KN/0-20KN/0-30KN/0-40KN/0-50KN | 0-100KN/0-200KN /0-300KN/0-500KN | 0-1000KN |
| Resolution | 0.001kN | 0.01kN | 0.1kN |
| Suggested Scope of Work | 20%-80% of maximum range | ||
| Accuracy Level | The accuracy of the force value of the instrument is ±1%FS when within the operating range. | ||
What kind of oil is added to the instrument?
L-HM32 anti-wear hydraulic oil
Do you provide the bolts or the anchor?
Yes, we have a complete set of the bolts or the anchor. Please refer to the detailed page of the product model, or consult us.
What is the Minimum Order Quantity (MOQ) for a product?
Our Minimum Order Quantity (MOQ) is deliberately set at a low level to provide accessibility and flexibility in your purchasing experience. This allows you to procure the quantity that best suits your needs without overcommitting to large volumes. We aim to empower our customers with the freedom to order according to their specific requirements and preferences
How long is the lead time for delivery?
Our lead time for delivery ranges from 7 to 15 days. We prioritize quick and efficient service to ensure your order reaches you promptly. Rest assured, our logistics team works diligently to expedite the delivery process while maintaining the highest standards of quality and reliability. Contact us for any specific delivery inquiries or urgent requirements.
What makes LANGRY's products competitive?
Our products excel due to their competitive pricing, superior quality, and direct factory sourcing. By offering cost-effective solutions without compromising on quality and leveraging direct factory relationships, we ensure our products meet the highest standards while remaining accessible and reliable in the market.
Can I request customization for the product's specifications?
Absolutely, we offer customization options tailored to your specific needs. Whether it’s adjusting specifications or creating bespoke solutions, our team is dedicated to accommodating your requirements. Get in touch with us to discuss your customization needs further, and we’ll work closely with you to ensure the product meets your exact specifications and expectations
Frequently Asked Questions
What is the Minimum Order Quantity (MOQ) for a product?
Our Minimum Order Quantity (MOQ) is deliberately set at a low level to provide accessibility and flexibility in your purchasing experience. This allows you to procure the quantity that best suits your needs without overcommitting to large volumes. We aim to empower our customers with the freedom to order according to their specific requirements and preferences
How long is the lead time for delivery?
Our lead time for delivery ranges from 7 to 15 days. We prioritize quick and efficient service to ensure your order reaches you promptly. Rest assured, our logistics team works diligently to expedite the delivery process while maintaining the highest standards of quality and reliability. Contact us for any specific delivery inquiries or urgent requirements.
What makes Langry's products competitive?
Our products excel due to their competitive pricing, superior quality, and direct factory sourcing. By offering cost-effective solutions without compromising on quality and leveraging direct factory relationships, we ensure our products meet the highest standards while remaining accessible and reliable in the market.
Can I request customization for the product's specifications?
Absolutely, we offer customization options tailored to your specific needs. Whether it’s adjusting specifications or creating bespoke solutions, our team is dedicated to accommodating your requirements. Get in touch with us to discuss your customization needs further, and we’ll work closely with you to ensure the product meets your exact specifications and expectations
What industries does your NDT equipment cater to?
Our NDT equipment is used in a wide range of industries, including aerospace, automotive, construction, manufacturing, oil and gas, power generation, and more. If you’re unsure whether our solutions are suitable for your industry, feel free to contact us, and we’ll be happy to discuss your specific needs.
