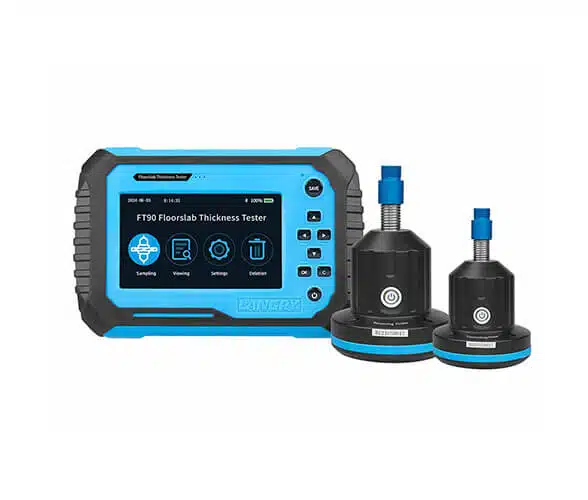

Floorslab Thickness Tester FT90
The FT90 Floorslab Thickness Tester is a portable instrument that uses non-destructive electromagnetic testing technology to measure the thickness of concrete and other nonferromagnetic materials.
-
The instrument adopts an integrated receiving design to ensure the stability and reliability of the connection.
-
Large storage capacity, worry-free detection.
-
The center of the transmitting probe is automatically locked during the detection process, which improves the detection efficiency.
Applications :
FT90 Floorslab Thickness Tester is a portable, electromagnetic non-destructive testing technology for measuring the thickness of concrete and other non-ferromagnetic media instrument.
CTN DIM: 258×258×430mm
CTN DIM: 345×115×260mm
G.W.: 20.1kg
G.W.: 3.1kg
CTN DIM: 345×115×260mm
About the Product
Uncover our Floorslab Tester in detail. Each component is meticulously crafted to ensure unmatched performance and lasting durability.
Product Specifications Overview
| Feature | Description |
|---|---|
| Measurement range | 20-900mm |
| Maximum permissible error |
20-350mm ±1mm 350-600mm ±2mm 601-900mm ±3mm |
| Data storage capacity | The instrument can store data for 5000 components locally |
| LCD | The instrument features a 5.0-inch full-color touch screen with a resolution of 854×480 |
| Battery | The instrument features built-in large-capacity lithium-ion batteries |
| Size/Weight |
[Host] Size: 200×125×50mm. Weight: 620g [Transmitting probe] Size: Φ90×87mm. Weight: 270g [Receiving probe] Size: Φ110×110mm. Weight: 400g |

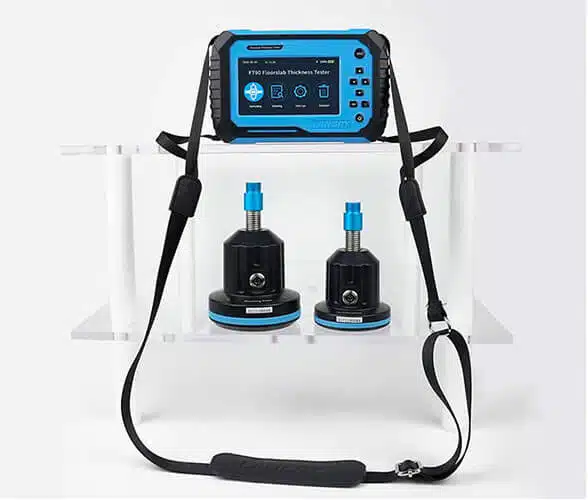

Floorslab Thickness Tester FT90
-

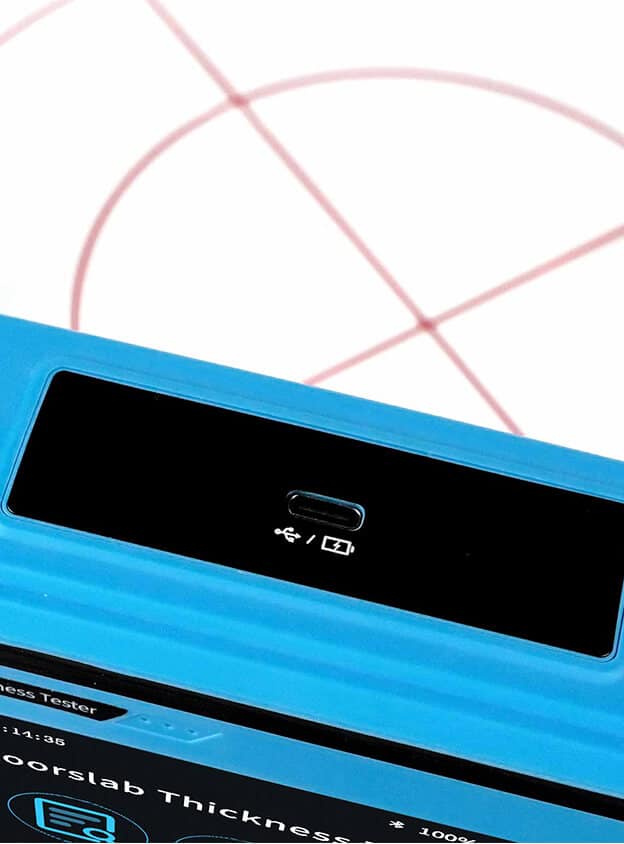

The instrument adopts an integrated design to ensure connection stability and reliability.
-

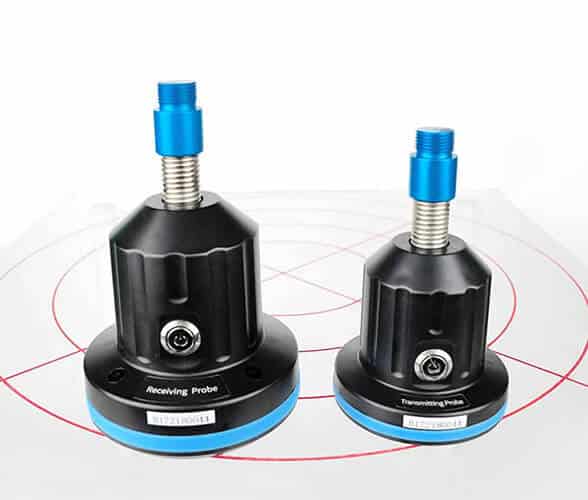

During the testing process, the emission probe center is automatically locked, improving testing efficiency.
-
The current thickness value is displayed in real-time, and invalid values are automatically filtered.
-
Real-time monitoring of component thickness averages, pass rates, and other test data is available.
-
The extension rod is made from durable, lightweight aluminum alloy, and features a convenient universal joint design.
-
Professional data analysis software automatically analyzes the data and quickly generates test reports.
Description
The FT90 Floorslab Thickness Tester is a portable instrument that uses electromagnetic nondestructive testing technology to measure the thickness of concrete and other non-ferromagnetic materials. The instrument features an integrated design for easy on-site testing. It offers advantages such as simple operation, wide measurement range, and low measurement error. The most notable feature of this instrument is its ability to automatically locate the emission probe position and lock the center within the valid signal reception range, greatly saving measurement time.
Host
Receiving Probe
Transmitting Probe
Walkie Talkies
Calibration Block
Extension Rods
Playlist
1 Videos
Product Specifications Overview
Name |
Technical Indicators |
|---|---|
|
Measurement Range |
20-900mm |
|
Resolution |
0.001kN |
|
LCD Screen |
The instrument features a 5.0-inch full-colortouch screen with a resolution of 854*480 |
|
Display Mode |
kN and MPa |
|
Accuracy Level |
1%(20% to 100% of the full range) |
|
Pulling Stroke |
30mm |
|
Rising(loading) Speed |
Constant speed:(5±1)mm/min, multi-gear adjustable; or constant force:250±50N/s or 29±4N/s, two options available. |
|
Data Storage |
The instrument can store data for 5000components locally |
|
Power Supply Method |
Li-On rechargeable |
|
Overall Dimensions |
L200mm*W125mm*H265mm |
|
Host Weight |
5kg |
Automatic Pull-off Tester LR-PA10
-
Ensures precise tensile strength measurement through automated control, reducing human error and achieving repeatable, accurate test results across a wide range of insulation materials.
-
Features advanced, high-precision force measurement technology, capturing even minor variations in bond strength to deliver reliable data and uphold industry compliance.
-
Equipped with a responsive, user-friendly interface and efficient data logging, simplifying test operations while enabling quick access to crucial results and stored data.
-
Versatile functionality enables diverse testing applications in construction and manufacturing, adapting to specific project requirements and enhancing quality control in material bonding.
Description
The LR-PA10 Automatic Pull-off Tester is suitable for testing the pull-off strength of rivets for fixed thermal insulation materials in construction, bonding strength of wall insulation materials, bonding strength of exterior wall finishing tiles, bonding strength of mortar, as well as the adhesive strength of coatings on various panels, paints, concrete surfaces, and other materials.
Host
Receiving Probe
Transmitting Probe
Walkie Talkies
Calibration Block
Extension Rods
Playlist
1 Videos
Product Specifications Overview
Name |
Specifications |
|---|---|
|
Hydraulic cylinder stroke |
10mm |
|
Display mode |
kN,MPa Can be set, adjustable |
|
Measuring range |
0-10kN |
|
Accuracy |
0.001kN |
|
Peak hold |
Yes |
|
Data storage |
More than 500 |
|
Accuracy grade |
±0.5%(F.S) |
|
Weight |
3kg |
Product Features
- Peak holding function. (Test)
- Manual/automatic storage and deletion of measurement data (500 pieces).
- High-precision S-type force sensor.
- Calibrate 10 segment broken line correction or full-scale calibration mode.
Description
The Langry Pull-off Tester LR-P10 offers comprehensive testing capabilities for various construction applications. Whether assessing the pull-off force of thermal insulation materials, bonding strength of wall insulation, or tapestry brick adhesion, this device delivers precise results. With an integrated design and customizable display options, including pressure measurement in kN or MPa, it ensures convenient operation and accurate readings. Equipped with peak hold functionality and ample data storage capacity, the LR-P10 is a reliable companion for construction professionals seeking efficiency and accuracy in their testing processes.
