CWD800
Crack Width & Depth Tester
-

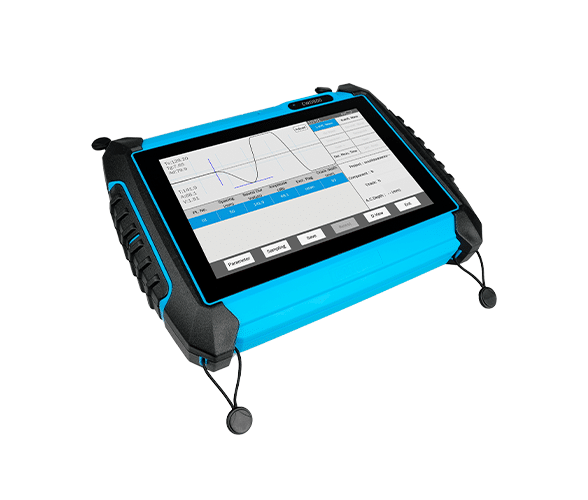

8-inch high-definition full-color LCD touch screen, easy to operate
-
It has two major functions: crack depth measurement and crack width measurement
-
High definition camera automatically captures cracks
Applications :
About the Product
Product Specifications Overview
|
Feature
|
Description
|
|---|---|
|
LCD |
8-inch color LCD screen, resolution 1280 × 800 |
|
Storage method |
16GB internal storage space |
|
A/D sampling accuracy |
24 digits |
|
Sampling interval |
0.05 μ s-1 μ s with multiple selectable levels |
|
Sampling length |
512 points -4096 points with multiple selectable levels |
|
Emission voltage |
65-1000V with multiple selectable levels |
|
Data upload method |
USB drive transfer for storage |
|
Power supply method |
Detachable lithium battery (6360mAh/10.8V) |
|
Working hours |
10h |
|
Working environment |
-10～50℃，≤90%RH |
|
Number of channels |
2 channels |
|
Overall dimensions |
Host 258 × 188 × 52mm |
|
Weight |
Host 2kg, microscope probe 200g, |
|
Depth measurement range |
≤500mm |
|
Depth measurement accuracy |
Crack depth ≤ 50mm, accuracy ± 5mm |
|
Width measurement range |
0mm ～ 10mm |
|
Width measurement accuracy |
±0.01mm |

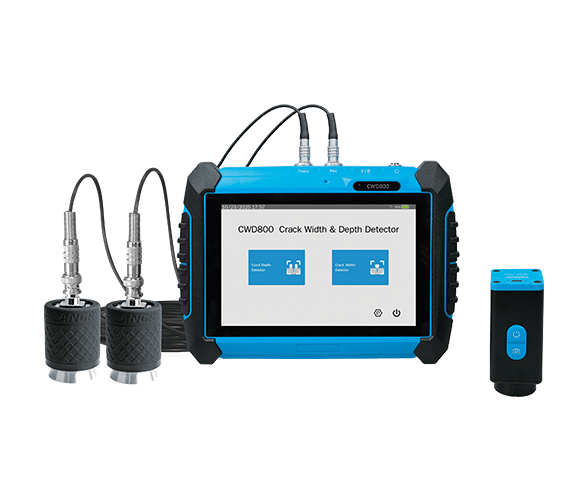

CWD800 Crack Width & Depth Tester
-
8-inch high-definition full-color LCD touch screen, easy to operate
-
It has two major functions: crack depth measurement and crack width measurement
-

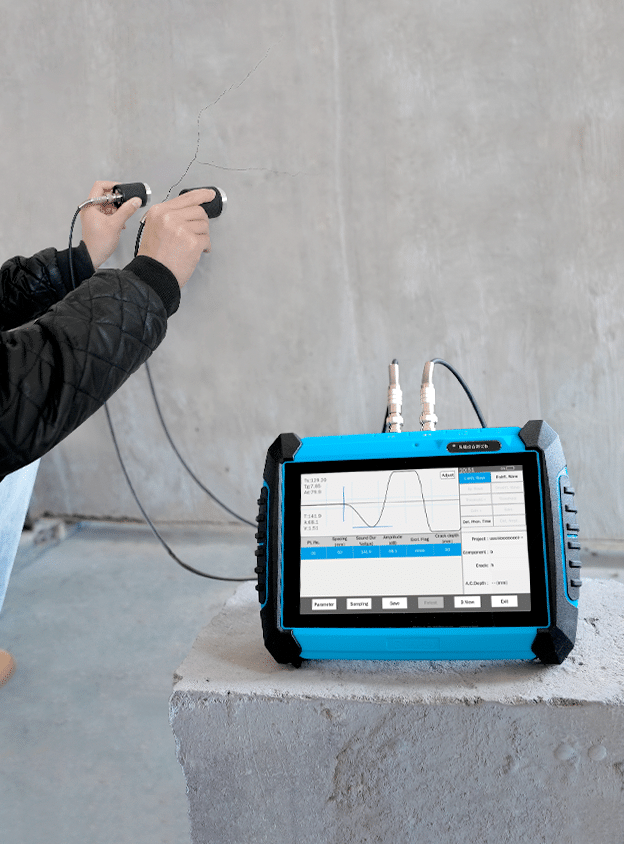

Automatically search for the first wave and adjust the magnification during the ultrasound acquisition process
-
High magnification acquisition, accurately reflecting waveforms when facing complex working conditions and long-distance testing
-

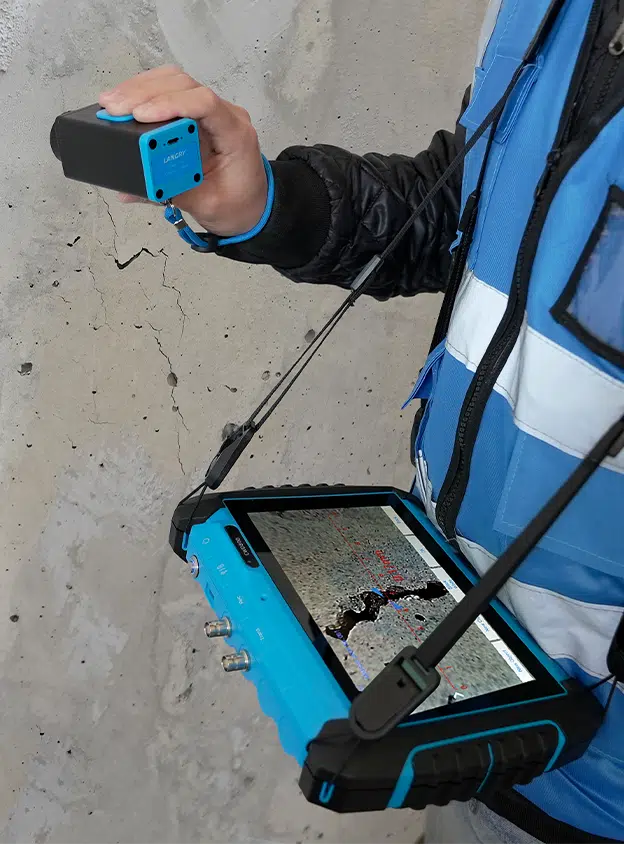

The high-definition camera automatically captures cracks and displays the crack width in real-time
-
Comes with a crack depth measurement ruler, convenient to carry and quickly locate the position of the crack depth measurement point
-
The host adopts high-strength impact resistant materials and dual material injection molding technology, which is more suitable for harsh on-site testing environments
-
Professional data analysis software to analyze detection data and generate detection reports
standards
-
GB/T 50784-2013 Technical standard for on-site inspection of concrete structures
-
CECS 21:2024 Technical specification for ultrasonic detection of concrete defects
Description

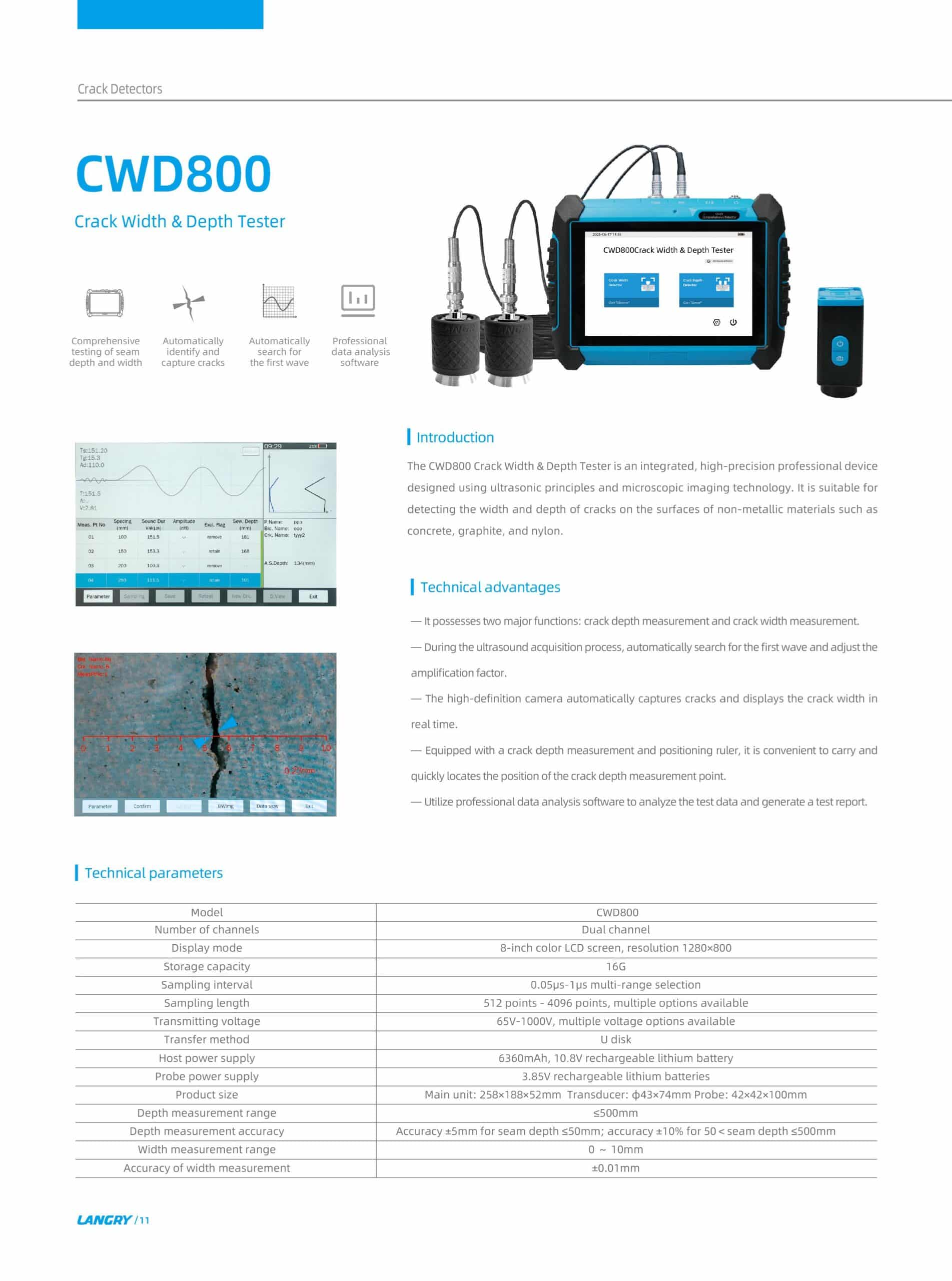

The CWD800 Crack Width & Depth Tester is an integrated, high-precision professional equipment designed using ultrasonic principles and microscopic camera technology. It is suitable for detecting the width and depth of cracks in non-metallic materials such as concrete.

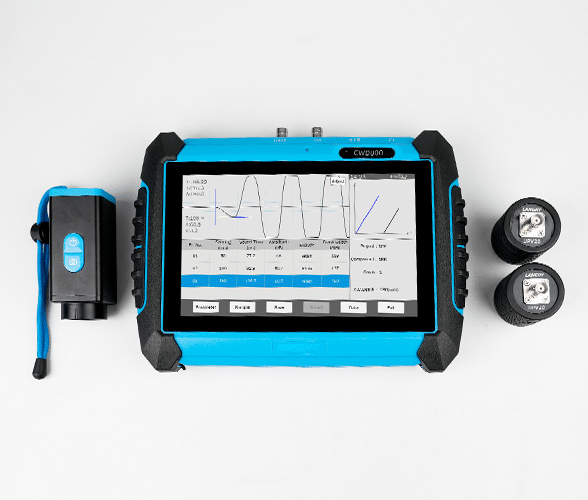

Main unit of crack comprehensive tester
Microscopic probe
Transducers
Signal lines
Tape measure
Depth measurement and positioning ruler
Crack width calibration plate
USB flash drive
Power adapter and data cable

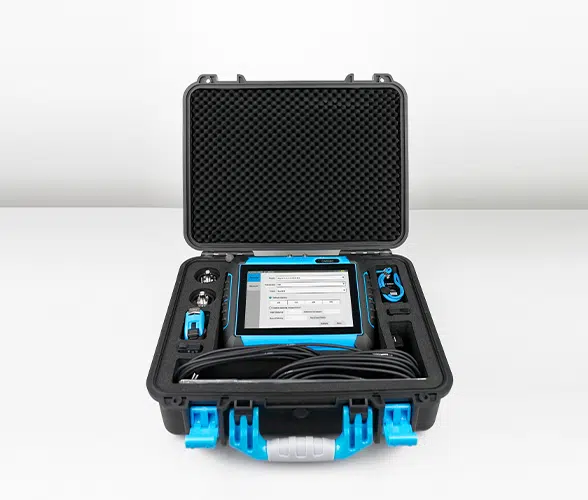

Instrument Case
