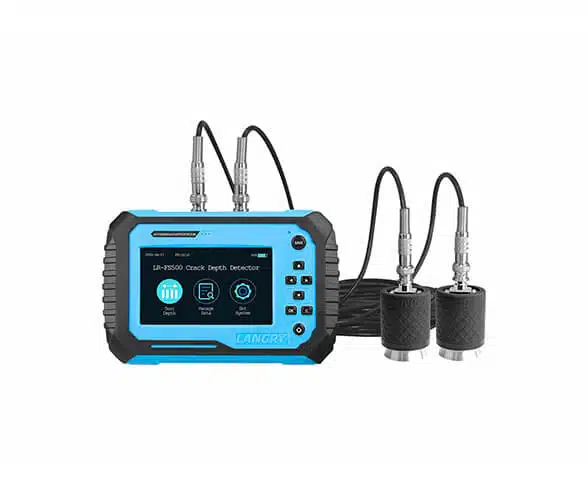

Crack Depth Detector LR-FS500
LANGRY’s LR-FS500 Crack Depth Detector precisely measures crack depth with ultrasonic waves. It is ideal for inspecting concrete and non-metal surfaces.
-
High-precision crack depth measurement
-
Portable and user-friendly design
-
Wide range of applications in structural assessment
Applications :
The Crack Depth Detector LR-FS500 ensures reliable evaluation of crack severity in various materials and structures. It is ideal for civil engineering, infrastructure maintenance, and non-destructive testing.
CTN DIM: 258×258×430mm
CTN DIM: 345×115×260mm
G.W.: 20.1kg
G.W.: 3.1kg
CTN DIM: 345×115×260mm
About The Product
Uncover our Crack Depth Detector LR-FS500 in detail. Each component is meticulously crafted to ensure unmatched performance and lasting durability.
Product Specifications Overview
|
Name
|
Technical indicators
|
|---|---|
|
Measurement range |
≤500mm
|
|
Measurement accuracy |
±5mm (crack depth≤50mm) or ±10% (50＜crack depth≤500mm) |
|
Dimension |
Host 200 * 136 * 50mm Transducer φ 43 * 74mm Signal line 2m |
|
Total weight |
Host 800g Transducer 290g * 2 Signal line 180g * 2 |
|
Detection Depth |
≤500mm |
|
Sampling period |
0.05μs-4μs |
|
Sound time resolving power |
0.1μs |
|
Amplitude resolving power |
<0.5dB |
Product Features
-
High magnification acquisition and precise waveform response.
-
The instrument is designed for the depth of concrete cracks, making it more professional.
-
Touch screen and button dual operation mode.
-
Equipped with online system software, the detection results are clear at a glance.
Description
The LR-FS500 is an advanced ultrasonic device designed to accurately estimate crack depth in concrete. It swiftly detects cracks on both concrete and non-metal surfaces by emitting ultrasonic waves and analyzing their propagation time. Furthermore, it ensures precise pinpointing of detection points during operation featuring a detection area seal. With automated first-wave search and magnification adjustment, it offers seamless functionality. It’s a dependable tool for comprehensive crack depth assessment, facilitating efficient and reliable inspection processes. Hence, this tool can be widely utilized in various industries.
One tester host
Transducer
Signal connection line
Straddle/non-straddle positioning stamp
Charger
Flexible Rule
Instrument case
Playlist
1 Videos
0:45
Product Specifications Overview
|
Name
|
Specifications
|
|---|---|
|
Measurement range |
0~10mm |
|
Measurement accuracy |
±0.01mm |
|
Data storage |
32GB |
|
Power supply |
Li-on rechargeable battery |
|
Outline dimensions |
Probe 50mm*50mm*160mm Tablet 245mm*165mm*15mm |
|
Total weight |
Probe 450 g Tablet 725g |
Product Features
-
Wireless connection for convenient and flexible operation.
-
Automatically captures both vertical and inclined cracks, displaying real-time crack width.
-
Allows seamless switching between multiple cracks.
-
Professional data analysis software enables seamless data transmission and analysis between the instrument and computer.
Description
The LR-FK202 Crack Width Detector employs wireless technology, facilitating precise detection of crack width in various structures like bridges, tunnels, and concrete pavements. Its user-friendly software, compatible with Win 9X/NT/XP/ Win10 (including 64-bit), simplifies data management for engineering testing personnel. You can effortlessly manage object information and crack width data, combining multiple files and generating comprehensive test reports automatically. You can also import data from tablets for further analysis, ensuring efficient archiving and streamlined reporting processes.
One set of crack width gauge
Tablet PC
Instrument case
Calibration board
Product Specifications Overview
|
Model
|
Cylinder center hole
|
Cylinder stroke
|
Measurement range
|
Cylinder weight
|
Common anchorage
|
Pull rod
|
Converter
|
|---|---|---|---|---|---|---|---|
|
LR-50T |
60mm
|
120mm
|
0-500kN
|
25kg
|
Φ6-Φ40
|
M39
|
M6-36
|
|
LR-100T
|
86mm
|
150mm
|
0-1000kN
|
58kg
|
Φ25-Φ50
|
M45
|
M20-42
|
Product Features
-
The thickened main body of high-strength steel with high-pressure resistance and no deformation
-
Precision machining of oil cylinders and one-way valves to maintain constant pressure without oil leakage
-
Memory for 500 data records, with dot matrix LCD illumination function
-
Zero tracking, peak hold, and automatic shutdown
-
Automatic data correction to improve instrument accuracy
-
Wide LCD display for easy data reading
-
Ultra-low power consumption design, with a continuous working time of over 200 hours
Product Specifications Overview
|
Name
|
Specifications
|
|---|---|
|
Hydraulic cylinder stroke |
10mm |
|
Display mode |
kN,MPa Can be set, adjustable |
|
Measuring range |
0-10kN |
|
Accuracy |
0.001kN |
|
Peak hold |
Yes |
|
Data storage |
More than 500 |
|
Accuracy grade |
±0.5%(F.S) |
|
Weight |
3kg |
Product Features
- Peak holding function. (Test)
- Manual/automatic storage and deletion of measurement data (500 pieces).
- High-precision S-type force sensor.
- Calibrate 10 segment broken line correction or full-scale calibration mode.
Description
The Langry Pull-off Tester LR-P10 offers comprehensive testing capabilities for various construction applications. Whether assessing the pull-off force of thermal insulation materials, bonding strength of wall insulation, or tapestry brick adhesion, this device delivers precise results. With an integrated design and customizable display options, including pressure measurement in kN or MPa, it ensures convenient operation and accurate readings. Equipped with peak hold functionality and ample data storage capacity, the LR-P10 is a reliable companion for construction professionals seeking efficiency and accuracy in their testing processes.
