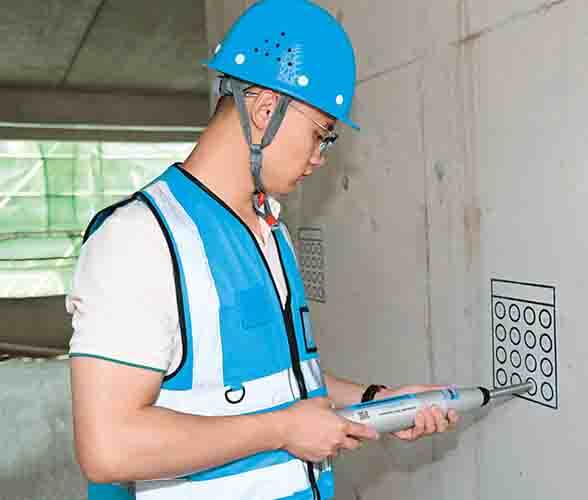

Concrete Test Hammer RH550-A
550-A is applicable for the detection of concrete compressive strength ranging from 60 to 80MPa, and can be used in major projects such as high-rise buildings, water conservancy projects, bridges and tunnels.
-
High-strength components are wear-resistant and have a longer service life.
-
The fuselage is equipped with labels and scales for convenient reading.
-
Custom sheathed hand rest, more comfortable to operate.
Applications :
It is suitable for structural engineering high-rise buildings etc. It ls usually suitable for the compressive strength test of concrete with strength grade of C50-C100.
CTN DIM: 258×258×430mm
CTN DIM: 345×115×260mm
G.W.: 20.1kg
G.W.: 3.1kg
CTN DIM: 345×115×260mm
About The Product
Uncover our Concrete Test Hammer RH550-A in detail. Each component is meticulously crafted to ensure unmatched performance and lasting durability.
Product Specifications Overview
Name |
Technical indicators |
|---|---|
|
Standard impact energy
|
5.500J |
|
Pointer length |
20.0±0.2mm |
|
Friction of pointer
|
0.65±0.15N |
|
Spherical radius of bouncing rod
|
18±1.0mm |
|
Elastic tension spring stiffness |
1100±50N/m |
|
Operating length of elastic tension spring |
86±0.5mm |
|
Bounce hammer take-off position |
Scale”0-1” |
|
Calibration value on testing anvil |
83±1 |
Product Features
-
Chrome-plated pointer allows for precise friction adjustments and enhances stability during testing.
-
High-strength construction guarantees exceptional wear resistance for a longer operational lifespan.
-
User-friendly scale and labels simplify the reading process for quick and accurate assessments.
-
Lightweight design ensures easy handling and portability, ideal for various job site applications.
Description
The RH550A Concrete Test Hammer is expertly crafted for evaluating the compressive strength of concrete in demanding construction environments. Designed to measure strength ranging from 60 to 80 MPa, this robust instrument is essential for high-rise buildings, bridges, and other major infrastructure projects. Its high-strength components ensure durability, while intuitive labels and scales facilitate easy readings. With a powerful impact energy of 5.5J, the RH550A provides reliable and efficient testing, making it a trusted tool for professionals in the field.
Accessory
Rebound Hammer
A Grinding Stone
Hand Protector Silicone Hand Rest
Instrument Case
One Maintenance Kit
Product Certificate
Product Specifications Overview
Model |
Cylinder center hole |
Cylinder stroke |
Measurement range |
Cylinder weight |
Common anchorage |
Pull rod |
Converter |
|---|---|---|---|---|---|---|---|
|
LR-50T |
60mm
|
120mm
|
0-500kN
|
25kg
|
Φ6-Φ40
|
M39
|
M6-36
|
|
LR-100T
|
86mm
|
150mm
|
0-1000kN
|
58kg
|
Φ25-Φ50
|
M45
|
M20-42
|
Product Features
-
The thickened main body of high-strength steel with high-pressure resistance and no deformation
-
Precision machining of oil cylinders and one-way valves to maintain constant pressure without oil leakage
-
Memory for 500 data records, with dot matrix LCD illumination function
-
Zero tracking, peak hold, and automatic shutdown
-
Automatic data correction to improve instrument accuracy
-
Wide LCD display for easy data reading
-
Ultra-low power consumption design, with a continuous working time of over 200 hours
Product Specifications Overview
Name |
Specifications |
|---|---|
|
Hydraulic cylinder stroke |
10mm |
|
Display mode |
kN,MPa Can be set, adjustable |
|
Measuring range |
0-10kN |
|
Accuracy |
0.001kN |
|
Peak hold |
Yes |
|
Data storage |
More than 500 |
|
Accuracy grade |
±0.5%(F.S) |
|
Weight |
3kg |
Product Features
- Peak holding function. (Test)
- Manual/automatic storage and deletion of measurement data (500 pieces).
- High-precision S-type force sensor.
- Calibrate 10 segment broken line correction or full-scale calibration mode.
Description
The Langry Pull-off Tester LR-P10 offers comprehensive testing capabilities for various construction applications. Whether assessing the pull-off force of thermal insulation materials, bonding strength of wall insulation, or tapestry brick adhesion, this device delivers precise results. With an integrated design and customizable display options, including pressure measurement in kN or MPa, it ensures convenient operation and accurate readings. Equipped with peak hold functionality and ample data storage capacity, the LR-P10 is a reliable companion for construction professionals seeking efficiency and accuracy in their testing processes.
Order Concrete Test Hammers in Bulk Now!
Seize the opportunity to stock up and save on bulk orders of Concrete Test Hammers.
OEM & ODM Facilities
Go beyond the ordinary with LANGRY’s comprehensive OEM and ODM services for NDT Equipment. We empower you to customize every aspect of our products, from the inside out.
-
Integrate your logo seamlessly onto the front-of-box label, nameplate, and user manual. Simply send us your logo file, and we'll handle the rest.
-
Ensure everything meets your expectations. We'll send you a sample rebound hammer customized with your branding for approval before production begins.
Contact LANGRY today to explore the possibilities and receive a personalized quote. We’re here to turn your vision into a reality.
Frequently Asked Questions
Is there a strength curve for comparison?
When there is no special strength curve, you can refer to the curve in the instrument or manual for strength conversion;
How often to calibrate and how to calibrate
It is recommended to calibrate once every 6 months, depending on the use of the rebound instrument to determine. When the following situations occur, it should be sent to a professional unit of measurement for calibration in time:
- Before the new rebound instrument is used;
- Beyond the validity period of calibration;
- The difference between the digital rebound value displayed by the digital rebound instrument and the pointer read-only value is greater than 1;
- After maintenance, the rate setting on the steel anvil is not qualified;
- Suffered serious impact or other damage;
