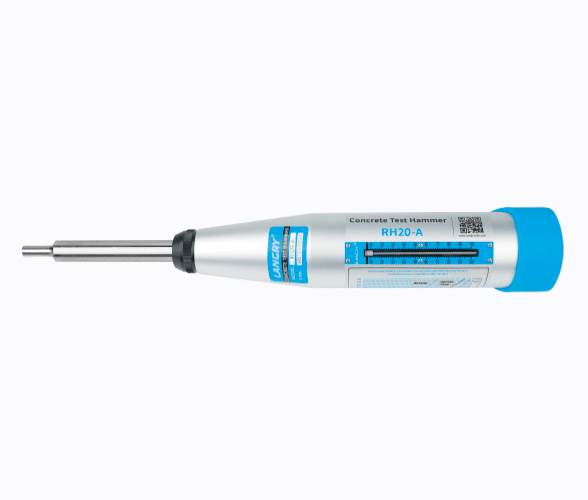

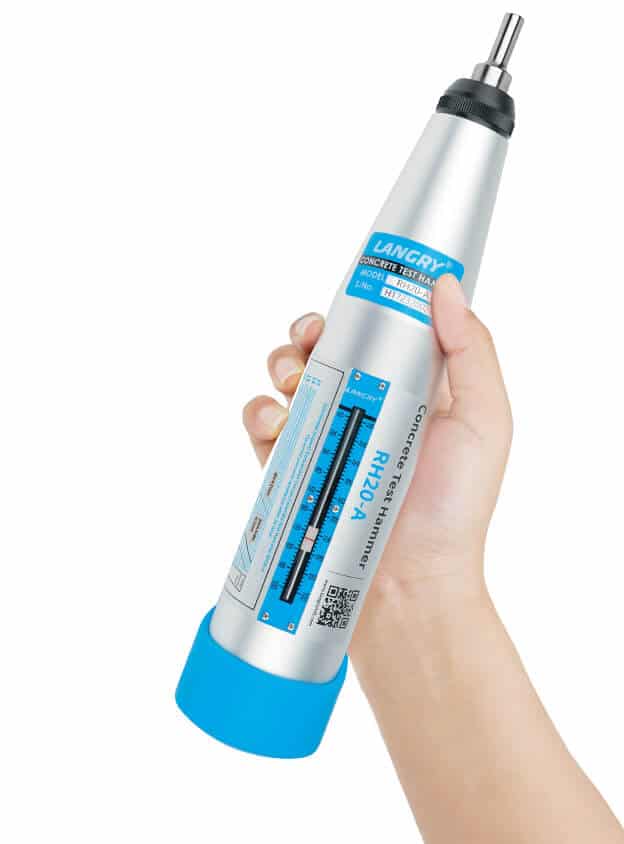

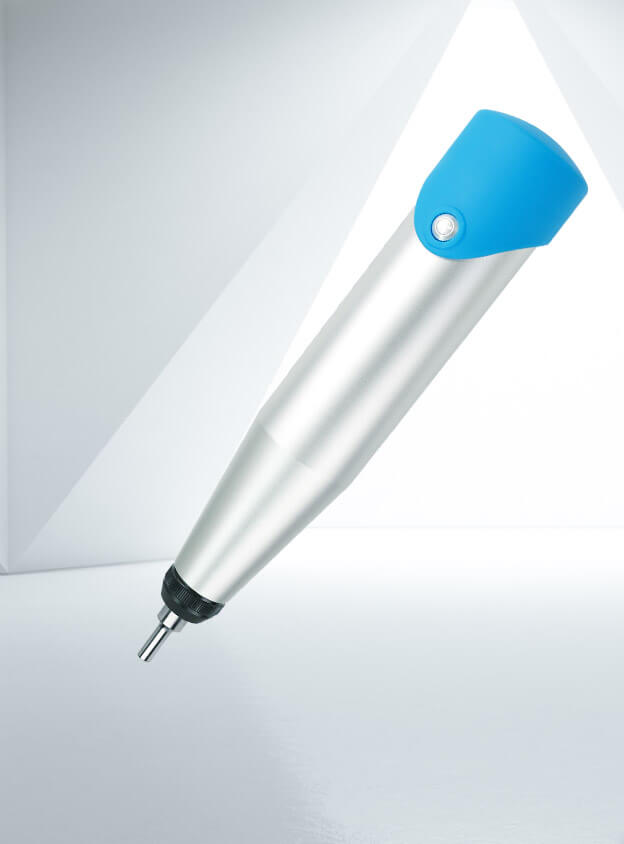

Concrete Test Hammer RH20-A

LANGRY RH20-A is a precision concrete test hammer for compressive strength assessment. Its reliable rebound values allow for accurate evaluation of mortar.
  • Portable and lightweight for easy handling

  • Durable construction for long-term reliability

  • Simple operation for quick concrete strength assessment

Applications :​

The Concrete Test Hammer RH20-A is ideal for on-site evaluation of concrete quality in construction projects, infrastructure maintenance, and material testing in civil engineering applications.
CTN DIM: 258×258×430mm
CTN DIM: 345×115×260mm
G.W.: 20.1kg

G.W.: 3.1kg

CTN DIM: 345×115×260mm

About The Product

Uncover our Concrete Test Hammer RH20-A in detail. Each component is meticulously crafted to ensure unmatched performance and lasting durability.

Edit Content

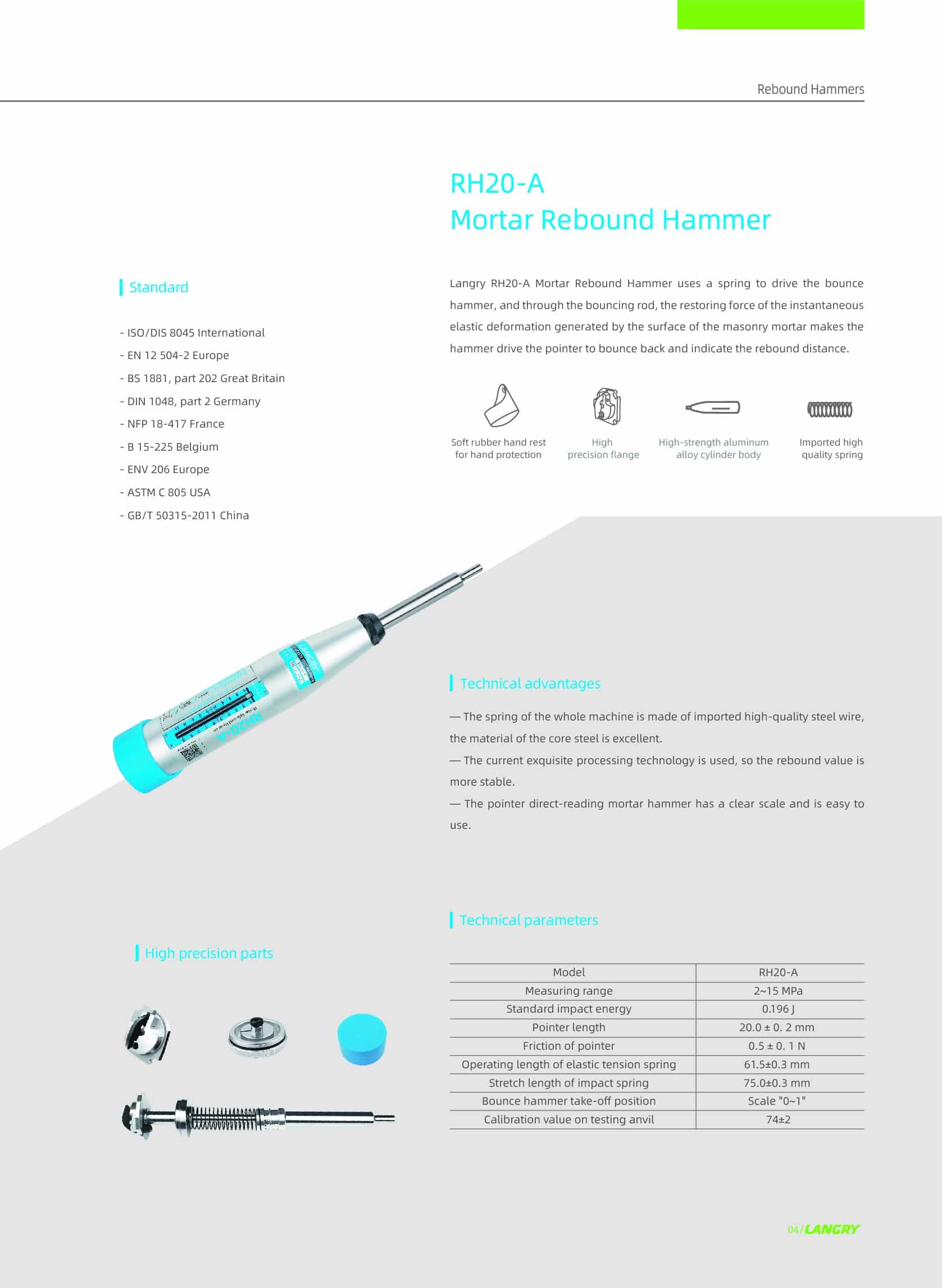

Product Specifications Overview

Name
Technical indicators

Measuring range

2~15 MPa

Standard impact energy

0.196 J

Pointer length

20.0±0.2mm

Stretch length of impact spring

75±0.3 mm

Friction of pointer

0.5 ± 0. 1 N

Operating length of elastic tension spring

61.5±0.3 mm

Bounce hammer take-off position

Scale"0~1"

Calibration value on testing anvil

74±2
Edit Content

Product Features

  • The spring of the whole machine is made of imported high-quality steel wire.

  • Excellent core steel, coupled with advanced processing, ensures stable rebound values.

  • The pointer direct-reading mortar hammer has a clear scale and is easy to use.

  • Low-load grating and optocoupler sensors ensure stable and accurate sampling of the digital hammer.

Standards

  • ASTM C 805 USA

Edit Content

Description

The LANGRY Concrete Test Hammer RH20-A is engineered for precise assessment of compressive strength in masonry. Utilizing a spring-driven mechanism, it measures rebound distance to gauge mortar strength in various masonry applications. With a measuring range of 2~15 MPa and standard impact energy of 0.196 J, it provides reliable data for evaluating mortar integrity. Featuring precise calibration on the testing anvil and minimal friction of the pointer, it ensures accurate results. Trust LANGRY for robust testing solutions in mortar.
Edit Content

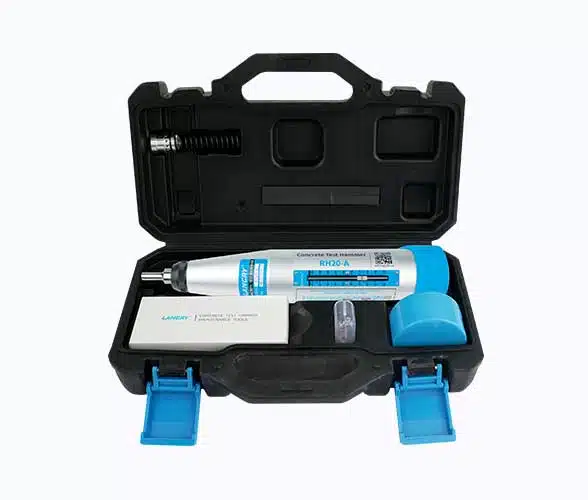

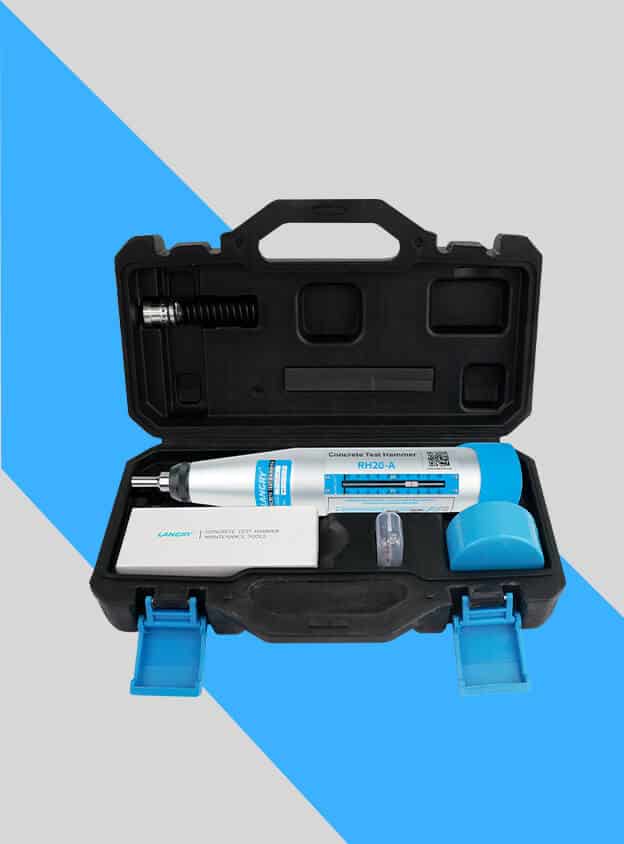

components

rebound hammer

Hand protector silicone hand rest

A grinding stone

One maintenance kit

instrument case

Accessories

Bluetooth printer

The Testing Anvil GZII enables precise calibration of rebound hammers for consistent and dependable measurements in structural integrity assessments. It is widely used in quality control, research laboratories, and manufacturing settings.

  • Digital concrete test Hammer with built-in Bluetooth chip, connected to a portable Bluetooth printer, can print out the original records and test results on site.

  • Available for extra purchase

User friendly upgrade design

  • Built-in bluetooth chip is connected to portable bluetooth printer and can print out the original records and test results in the field.

  • Equipped with high-power loudspeaker, on-site voice count more clearly, can also be normally used in noisy environment.

  • Removable large capacity lithium battery, super long standby, easy to maintain.

  • Upgrade dust-proof structure, easier maintenance, longer service life and more stable rebound value.
