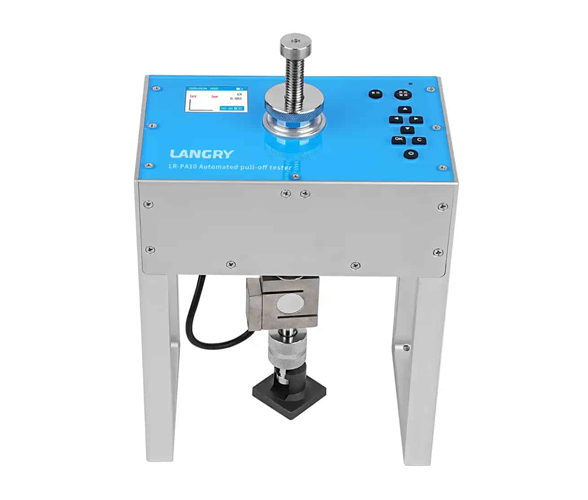

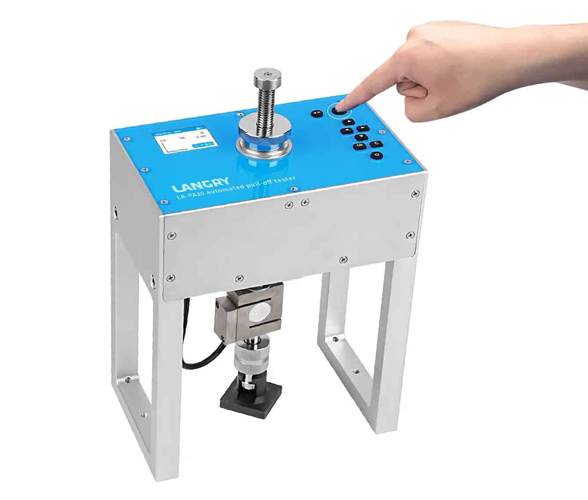

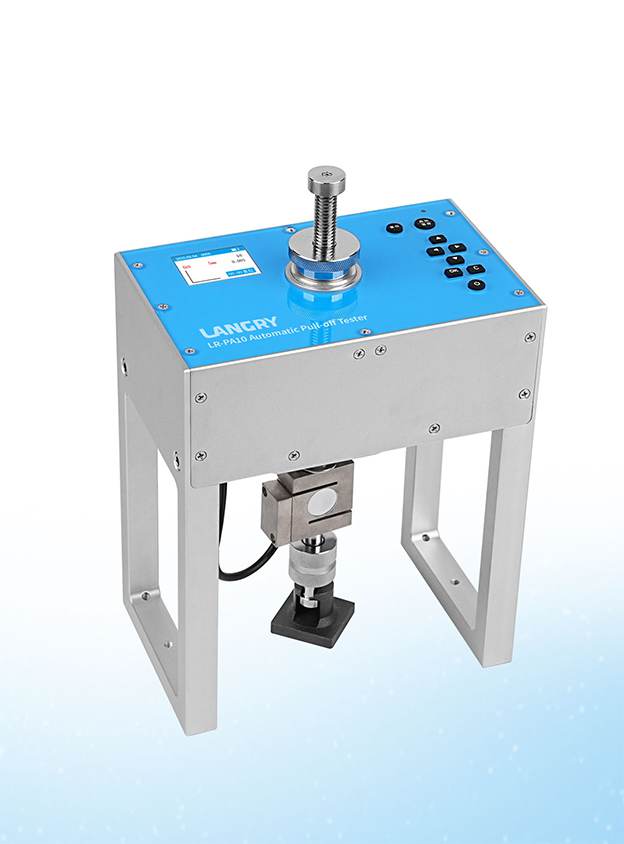

Automatic Pull-off Tester LR-PA10

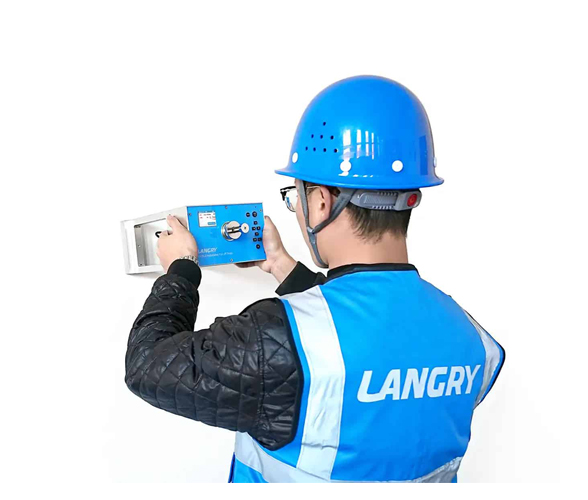

The LR-PA10 fully automatic bonding strength tester is suitable for testing the tensile strength of insulation material rivets in construction projects, the bonding strength of wall insulation materials, and many more.
-
Automated operation for consistent results.
-
High-precision force measurement.
-

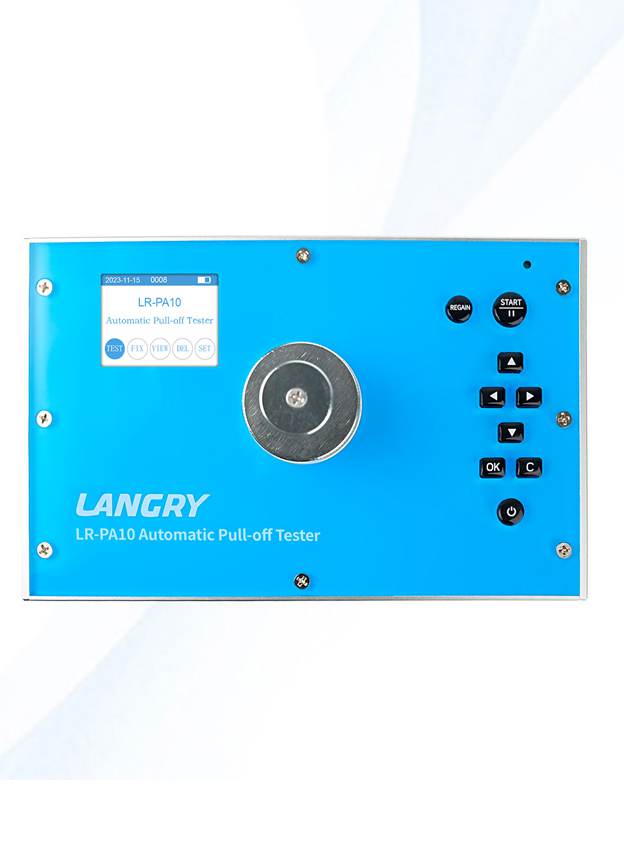

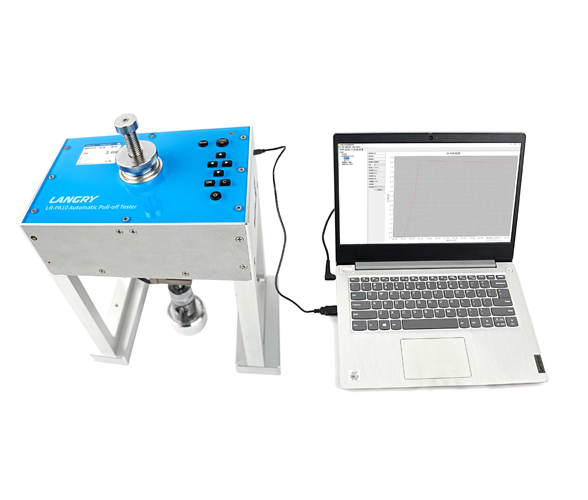

User-friendly interface and data logging.
Applications :
The Automatic Pull-off Tester LR-PA10 evaluates coatings’ adhesive strength, ensuring durability and compliance with industry standards. It is ideal for construction, manufacturing, and quality assurance.
CTN DIM: 258×258×430mm
CTN DIM: 345×115×260mm
G.W.: 20.1kg
G.W.: 3.1kg
CTN DIM: 345×115×260mm
About the Product

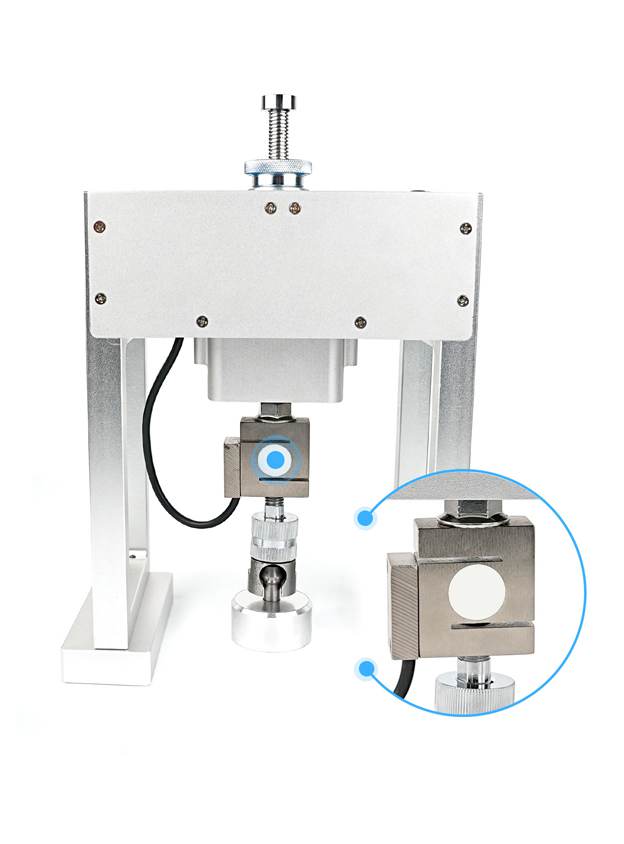

Uncover our Automated Pull-off Tester in detail. Each component is meticulously crafted to ensure unmatched performance and lasting durability.
Product Specifications Overview
Name |
Specifications |
|---|---|
|
Measurement range |
20-900mm |
|
Maximum permissible error |
20-350mm±1mm
350-600mm±2mm 601-900mm±3mm |
|
Data storage capacity |
The instrument can store data for 5,000 components locally
|
|
LCD |
The instrument features a 5.0-inch full-color touch screen with a resolution of 854*480
|
|
Battery |
The instrument features built-in large-capacity lithium-ion batteries
|
|
Size/Weight |
[Host]Size: 200*125*50mm, Weight: 620g |
Floorslab Thickness Tester FT90
-
The receiving probe automatically determines the direction and locks the center, greatly improving the detection efficiency.
-
The receiving probe and the host connect with Bluetooth, which is convenient to use and avoids the problem that the signal line is prone to failure due to frequent plugging and pulling
-
The instrument is equipped with a capacitive touch screen as standard, which can realize full touch operation and make human-computer interaction more convenient.
-
The instrument is equipped with professional software for data analysis, which can realize data transmission between the instrument and the computer, analyze the test data, and generate a test report
Description
The LANGRY FT90 floorslab thickness tester is a portable instrument that uses electromagnetic
non-destructive testing technology to measure the thickness of concrete and other non-ferromagnetic media. The instrument adopts a split structure, with the host and receiving probe transmitting signals through Bluetooth for easy on-site testing. It has the advantages of simple operation, wide measurement range, and small measurement error. The most outstanding function of the instrument is that the host and receiving probe can automatically find the position of the transmitting probe within the effective range of signal reception and lock the center, which greatly saves the measurement time.
Host
Receiving probe
Transmitting probe
Walkie-talkies
Calibration block
Extension rods
Playlist
1 Videos
Product Specifications Overview
Name |
Specifications |
|---|---|
|
Hydraulic cylinder stroke |
10mm |
|
Display mode |
kN,MPa Can be set, adjustable |
|
Measuring range |
0-10kN |
|
Accuracy |
0.001kN |
|
Peak hold |
Yes |
|
Data storage |
More than 500 |
|
Accuracy grade |
±0.5%(F.S) |
|
Weight |
3kg |
Product Features
- Peak holding function. (Test)
- Manual/automatic storage and deletion of measurement data (500 pieces).
- High-precision S-type force sensor.
- Calibrate 10 segment broken line correction or full-scale calibration mode.
Description
The Langry Pull-off Tester LR-P10 offers comprehensive testing capabilities for various construction applications. Whether assessing the pull-off force of thermal insulation materials, bonding strength of wall insulation, or tapestry brick adhesion, this device delivers precise results. With an integrated design and customizable display options, including pressure measurement in kN or MPa, it ensures convenient operation and accurate readings. Equipped with peak hold functionality and ample data storage capacity, the LR-P10 is a reliable companion for construction professionals seeking efficiency and accuracy in their testing processes.
Order Automatic Pull-off Testers in Bulk Now!
Seize the opportunity to stock up and save on bulk orders of quality Automated Pull-off Testers.
OEM & ODM Facilities
Go beyond the ordinary with LANGRY’s comprehensive OEM and ODM services for NDT Equipment. We empower you to customize every aspect of our products, from the inside out.
-
Integrate your logo seamlessly onto the front-of-box label, nameplate, and user manual. Simply send us your logo file, and we'll handle the rest.
-
Ensure everything meets your expectations. We'll send you a sample rebound hammer customized with your branding for approval before production begins.
Contact LANGRY today to explore the possibilities and receive a personalized quote. We’re here to turn your vision into a reality.
Frequently Asked Questions
Do you provide instructions or tutorial on how to use the equipment for the pull out test?
Yes, you can check our Video, find the product model you need, there are video tutorials, if you do not understand, you can also contact us, we have professional technicians.
What are the sizes of test blocks configured respectively for LR-P6,LR-P40,LR-PA10,LR-P10?
√ means standard configuration，+ means Optional (optional needs specific consultation)，– means None
Block Size |
LR-P6 |
LR-P40 |
LR-PA10 |
LR-P10 |
|---|---|---|---|---|
|
40*40 |
√ |
- |
√ |
- |
|
45*95 |
√ |
- |
√ |
- |
|
100*100 |
+ |
- |
√ |
- |
|
Φ20 |
- |
- |
√ |
- |
|
Φ50 |
- |
√ |
√ |
√ |
|
Rivet Pulling Tool |
- |
- |
√ |
√ |
What is the Minimum Order Quantity (MOQ) for a product?
Our Minimum Order Quantity (MOQ) is deliberately set at a low level to provide accessibility and flexibility in your purchasing experience. This allows you to procure the quantity that best suits your needs without overcommitting to large volumes. We aim to empower our customers with the freedom to order according to their specific requirements and preferences.
How long is the lead time for delivery?
Our lead time for delivery ranges from 7 to 15 days. We prioritize quick and efficient service to ensure your order reaches you promptly. Rest assured, our logistics team works diligently to expedite the delivery process while maintaining the highest standards of quality and reliability. Contact us for any specific delivery inquiries or urgent requirements.
What makes LANGRY's products competitive?
Our products excel due to their competitive pricing, superior quality, and direct factory sourcing. By offering cost-effective solutions without compromising on quality and leveraging direct factory relationships, we ensure our products meet the highest standards while remaining accessible and reliable in the market.
Can I request customization for the product's specifications?
Absolutely, we offer customization options tailored to your specific needs. Whether it’s adjusting specifications or creating bespoke solutions, our team is dedicated to accommodating your requirements. Get in touch with us to discuss your customization needs further, and we’ll work closely with you to ensure the product meets your exact specifications and expectations.
What industries does your NDT equipment cater to?
Our NDT equipment is used in a wide range of industries, including aerospace, automotive, construction, manufacturing, oil and gas, power generation, and more. If you’re unsure whether our solutions are suitable for your industry, feel free to contact us, and we’ll be happy to discuss your specific needs.
