AT10-M
Adhesion Tester

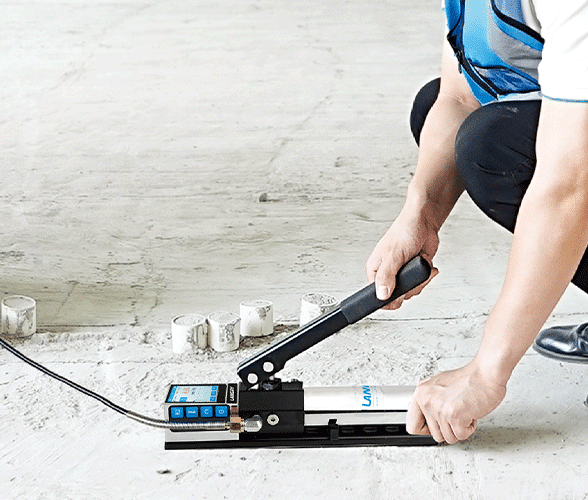

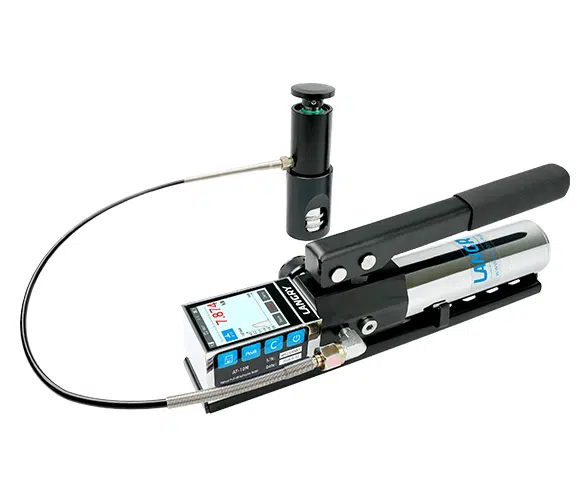

The AT10-M Adhesion Tester is a product independently developed by Langry. This instrument uses a hydraulic pulling system to measure the force required to pull coatings of different specified diameters off their substrates, displayed on an intelligent digital pressure gauge, representing the adhesion strength between the coating and the substrate.
-
The force time curve and load are displayed on the same screen.
-
Four testing units are available: kN, MPa, psi, and lbf.
-
2.8-inch high-definition color touchable LCD screen.
Applications :
Coating adhesion testing (bond strength testing) is the core means of evaluating the adhesion strength between coatings and substrates. Its core application is to control the quality of coatings, ensure protection/functionality and durability, and cover areas with coating requirements such as construction and engineering.
CTN DIM: 258×258×430mm
CTN DIM: 345×115×260mm
G.W.: 3.1kg
CTN DIM: 345×115×260mm
About The Product
Product Specifications Overview
|
Name
|
Technical indicators
|
|---|---|
|
Resolution |
1psi (0.01MPa, 0.001kN, 1 lbf) |
|
Accuracy |
± 1% FS |
|
Hydraulic cylinder stroke |
10mm |
|
Measurement range |
0-10kN |
|
Battery life |
15 hours |
|
Data storage |
4000 records |
Product Features
-

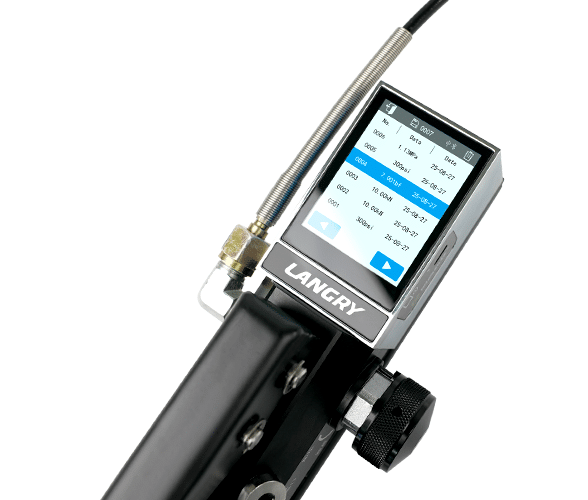

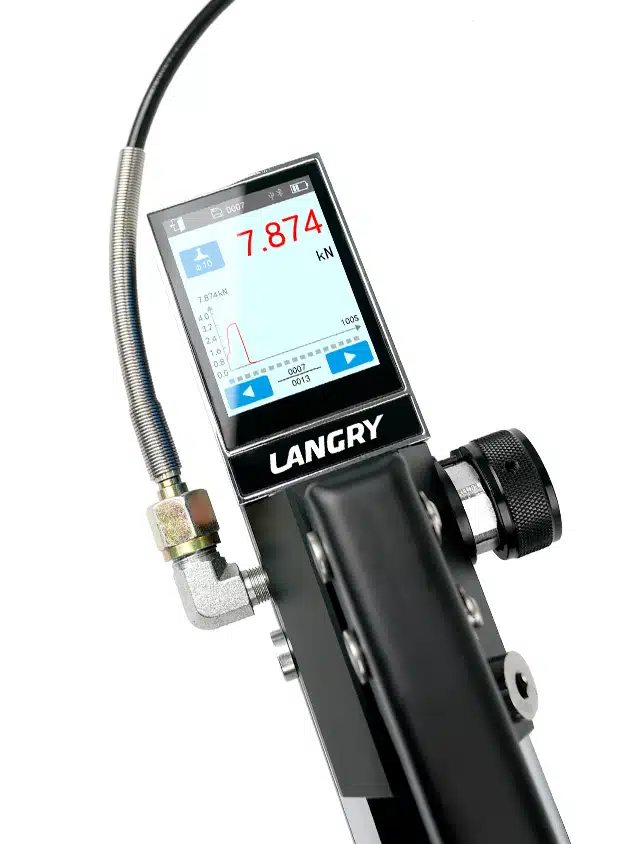

The force time curve and load are displayed on the same screen, and the detection process data is fully recorded.
-
2.8-inch high-definition color touchable LCD screen.
-
Loading speed prompt to make the experiment more in line with regulatory requirements.
-
Four testing units are available: kN, MPa, psi, and lbf.
-
Five sizes of spindles are available, including 10mm, 14mm, 20mm, 50mm, and 50 × 50mm.
-
Automatically calculate the detection results based on the size of the spindle.
-
The pressure system has undergone strict calibration, with an accuracy of ± 1% FS, easy calibration, stable force output, high accuracy, and no temperature drift.
-
Integrated digital pressure gauge, using high-quality high impedance pressure sensor.
-

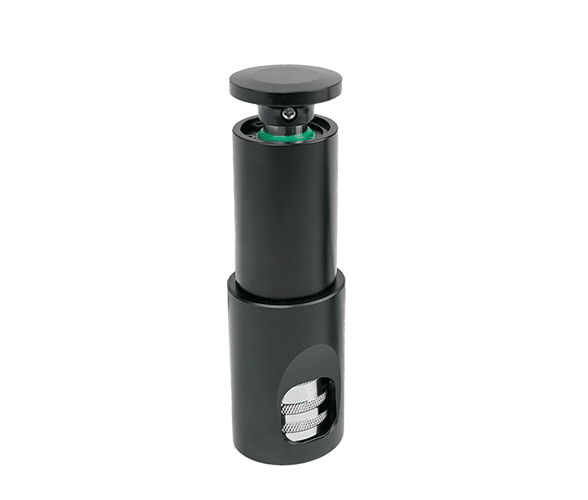

The automatically aligned spindle can accurately measure on smooth or uneven surfaces.
Standards
-
ASTM C1583/C1583M
-
ASTM C1857/C1857M
-
ASTM D4541
-
ASTM D7234
-
ASTM D7522
-
EN 1015-12:2016
-
EN 12004-2-2021
-
EN 1348-2007
-
EN 1542-1999
-
ISO 4624ISO16276-1
Description
The AT10-M Adhesion Tester is a product independently developed by Langry. This instrument uses a hydraulic pulling system to measure the force required to pull coatings of different specified diameters off their substrates, displayed on an intelligent digital pressure gauge, representing the adhesion strength between the coating and the substrate. Its pressure system has undergone strict calibration, with stable force output and high accuracy. It also has the characteristic of no temperature drift, ensuring the accuracy and reliability of test results. It is a reliable high-performance testing instrument.
components
Adhesion tester
Ф20 aluminum ingots
Adhesion manual cutter
Ф20 supporting sleeve
cotton swab
sandpaper
square wood chips
AB glue
