Anchor Pull Out Test Equipment for Integrity Testing
Our anchor pull out test equipment is versatile and easy to use. It provides complete solutions for evaluating the anchors in various construction applications.
Introducing Anchor Pull Out Test Equipment
- Robust Construction: Our anchor pull out test equipment is made of high-strength steel. It resists high pressures and deforms minimally, ensuring precise tests in demanding conditions.
- Reliable Performance: Our testers have precision-machined oil cylinders and one-way valves. It maintains pressure with zero oil leakage, guaranteeing accurate test results.
- Enhanced Efficiency: Our testers store up to 500 data records, feature automatic data correction, and have a wide LCD. These features enable seamless operation and long use with ultra-low power consumption.
Applications of Pull-out Anchor Testers

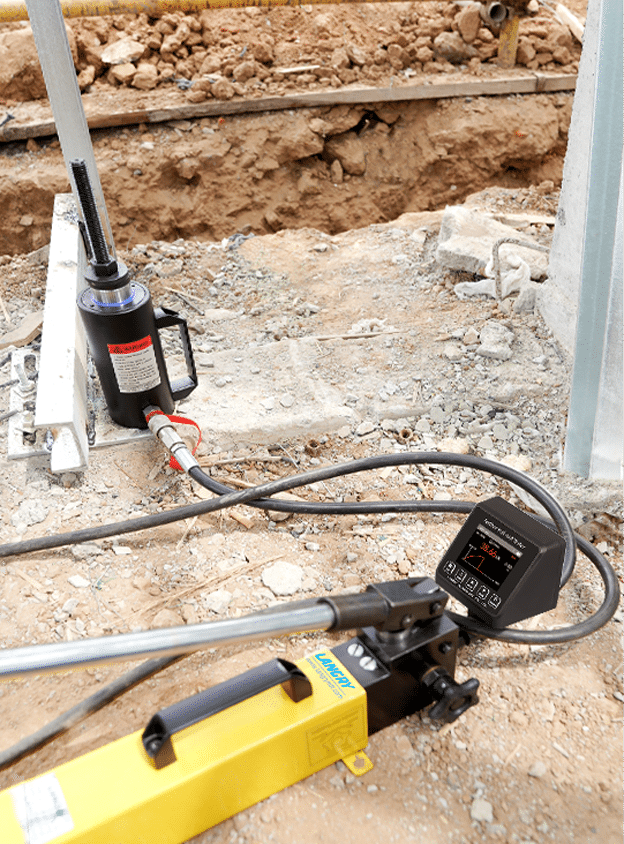

- These testers measure the pull-out force of anchor rods, steel bars, and expansion bolts. They provide reliable performance in construction and engineering applications.

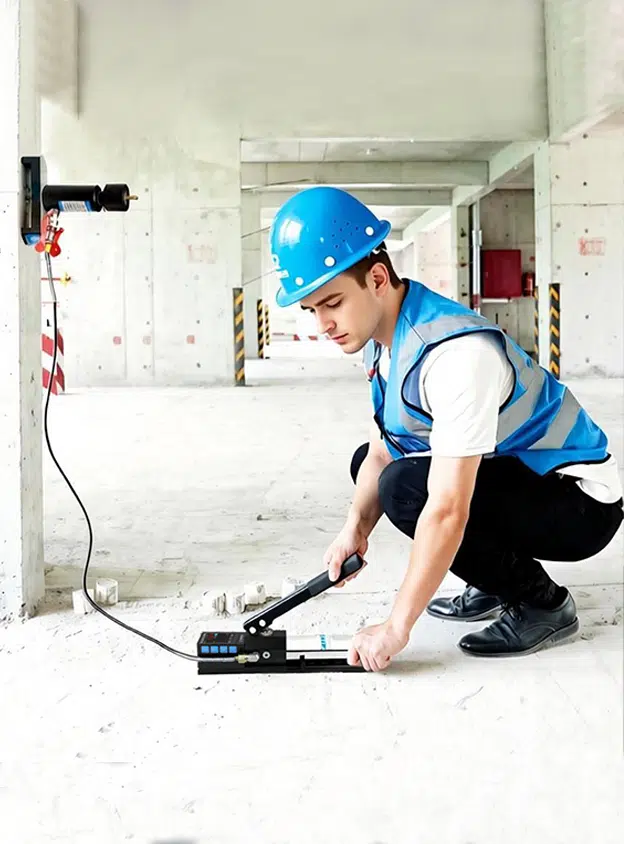

- Pull-Out Anchor Testers are vital for on-site testing of glass curtain walls. They ensure quality and safety in construction projects.
- These testers are vital to infrastructure projects. They assess the compressive strength of concrete and verify anchor installation integrity. These testers play a key role in construction quality inspection.
Product Comparison
Our product comparison will help you find the best anchor testing equipment for your construction projects. Assess accuracy and ease of use to ensure secure anchoring solutions.
|
Model
|

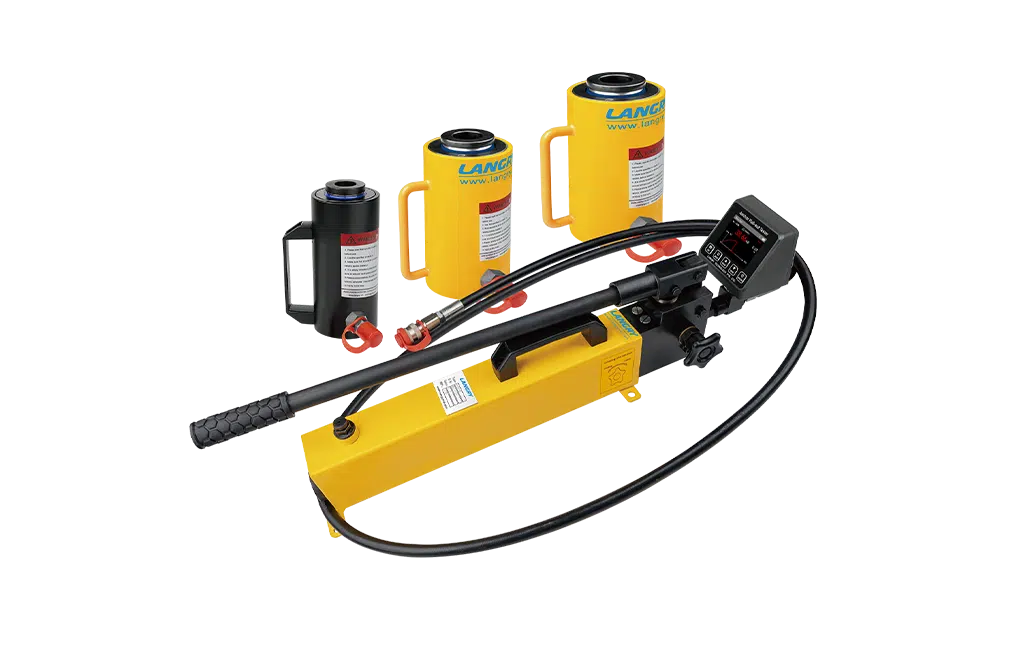

LR-10T/20T/30T Anchor Bolt Pull Out Tester
|

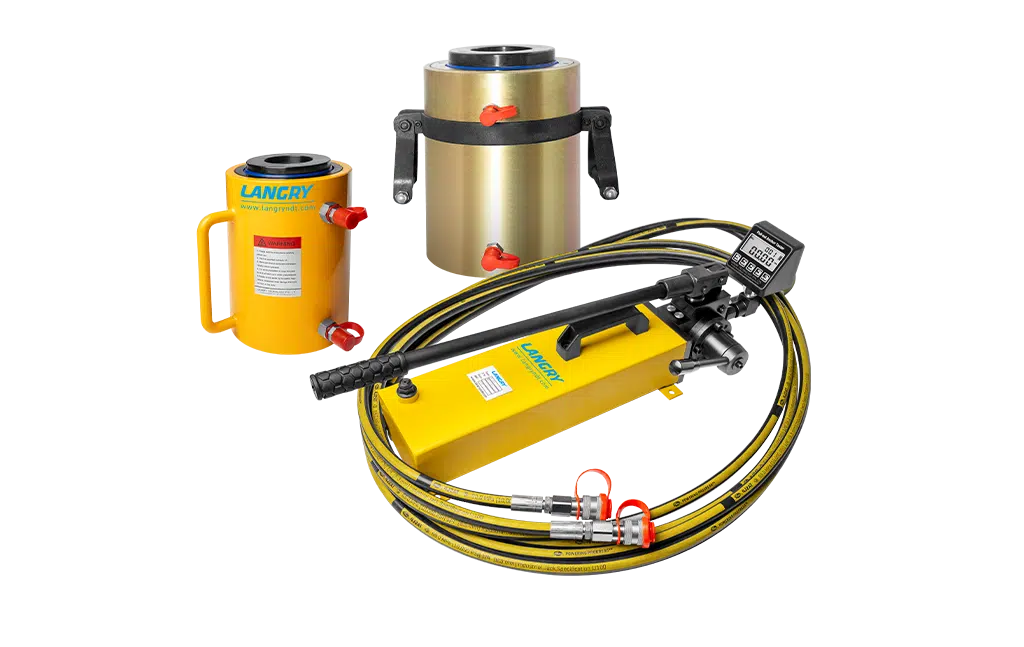

LR-50T/100T Anchor Bolt Pull Out Tester
|

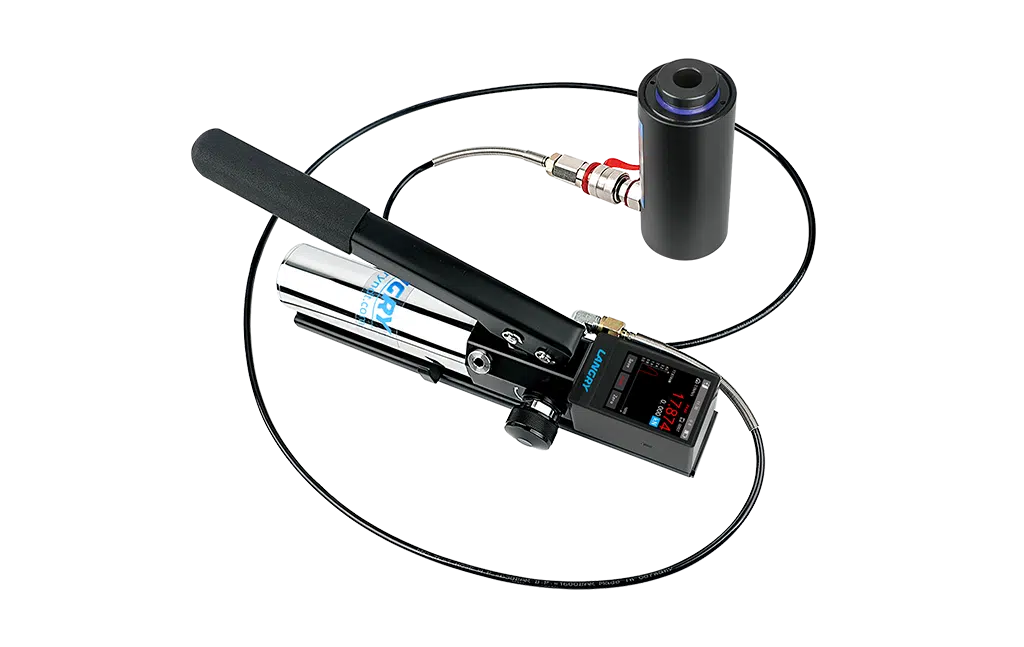

LR-M1/M2/M3/M4/M5 Anchor Bolt Pull Out Tester
|
|---|---|---|---|
|
Cylinder center hole |
LR-10T: 27mm
LR-20T: 35mm LR-30T: 45mm |
LR-50T: 60mm
LR-100T: 86mm |
LR-M1: 18mm |
|
Cylinder stroke |
LR-10T: 60mm |
LR-50T: 120mm |
LR-M1: 50mm |
|
Measurement range |
LR-10T: 0-100kN
LR-20T: 0-200kN LR-30T: 0-300kN |
LR-50T: 0-500kN
LR-100T: 0-1000kN |
LR-M1: 0-10kN
LR-M2: 0-20kN LR-M3: 0-30kN LR-M4: 0-40kN LR-M5: 0-50kN |
|
Cylinder weight |
LR-10T: 5.5kg
LR-20T: 13kg LR-30T: 15kg |
LR-50T: 25kg
LR-100T: 58kg |
LR-M1: 1.5kg
LR-M2: 1.5kg LR-M3: 1.5kg LR-M4: 1.5kg LR-M5: 1.5kg |
|
Common anchorage |
LR-10T: Φ6-Φ20
LR-20T: Φ6-Φ25 LR-30T: Φ6-Φ32 |
LR-50T: Φ6-Φ40
LR-100T: Φ25-Φ50 |
LR-M1: Φ6-Φ12
LR-M2: Φ6-Φ12 LR-M3: Φ6-Φ12 LR-M4: Φ6-Φ12 LR-M5: Φ6-Φ12 |
|
Pull rod |
LR-10T: M18
LR-20T: M24 LR-30T: M30 |
LR-50T: M39
LR-100T: M45 |
LR-M1: M12
LR-M2: M12 LR-M3: M12 LR-M4: M12 LR-M5: M12 |
|
Converter |
LR-10T: M6-20
LR-20T: M6-22 LR-30T: M6-27 |
LR-50T: M6-36
LR-100T: M20-42 |
LR-M1: M6-10
LR-M2: M6-10 LR-M3: M6-10 LR-M4: M6-10 LR-M5: M6-10 |
|
Model
|
Cylinder center hole
|
Cylinder stroke
|
Measurement range
|
Cylinder weight
|
Common anchorage
|
Pull rod
|
Converter
|
Accuracy Level
|
|---|---|---|---|---|---|---|---|---|
|
LR-10T |
27mm |
60mm |
0-100kN |
5.5kg |
Φ6-Φ20 |
M18 |
M6-20 |
EN ISO 7500-1 Class 1 |
|
LR-20T |
35mm |
70mm |
0-200kN |
13kg |
Φ6-Φ25 |
M24 |
M6-22 |
EN ISO 7500-1 Class 1 |
|
LR-30T |
45mm |
70mm |
0-300kN |
15kg |
Φ6-Φ32 |
M30 |
M6-27 |
EN ISO 7500-1 Class 1 |
|
LR-50T |
60mm |
120mm |
0-500kN |
25kg |
Φ6-Φ40 |
M39 |
M6-36 |
EN ISO 7500-1 Class 1 |
|
LR-100T |
86mm |
150mm |
0-1000kN |
58kg |
Φ25-Φ50 |
M45 |
M20-42 |
EN ISO 7500-1 Class 1 |
|
LR-M1 |
18mm |
50mm |
0-10kN |
1.5kg |
Φ6-Φ12 |
M12 |
M6-10 |
EN ISO 7500-1 Class 1 |
|
LR-M2 |
18mm |
50mm |
0-20kN |
1.5kg |
Φ6-Φ12 |
M12 |
M6-10 |
EN ISO 7500-1 Class 1 |
|
LR-M3 |
18mm |
50mm |
0-30kN |
1.5kg |
Φ6-Φ12 |
M12 |
M6-10 |
EN ISO 7500-1 Class 1 |
|
LR-M4 |
18mm |
50mm |
0-40kN |
1.5kg |
Φ6-Φ12 |
M12 |
M6-10 |
EN ISO 7500-1 Class 1 |
|
LR-M5 |
18mm |
50mm |
0-50kN |
1.5kg |
Φ6-Φ12 |
M12 |
M6-10 |
EN ISO 7500-1 Class 1 |
Enhance Your Anchor Tester Solutions Today!
Experience the precision and reliability of Langry’s Anchor Pull Out Test Equipment.
OEM/ODM Capabilities of Langry NDT
Go beyond the ordinary with LANGRY’s comprehensive OEM and ODM services for NDT Equipment. We empower you to customize every aspect of our products, from the inside out.
-
Integrate your logo seamlessly onto the front-of-box label, nameplate, and user manual. Simply send us your logo file, and we'll handle the rest.
-
Ensure everything meets your expectations. We'll send you a sample rebound hammer customized with your branding for approval before production begins.
Contact LANGRY today to explore the possibilities and receive a personalized quote. We’re here to turn your vision into a reality.
Frequently Asked Questions
What types of anchoring components can be tested with LANGRY's Anchor Pull Out Test Equipment?
LANGRY’s anchor pull out test equipment can test various anchors, rebars, and expansion bolts. It can also test other anchoring components. They provide accurate assessments of anchoring force and tensile strength.
What materials are LANGRY's Anchor Pull-Out Test Equipment made of?
Our Anchor pull-out testers feature a main body of thicker high-strength steel. It ensures durability and stability under high pressure. Precision machining technology is used to maintain constant pressure and prevent oil leakage during testing.
What user-friendly features are included in LANGRY's pull-out anchor testers?
LANGRY’s anchor pull out test equipment has many user-friendly features. They include a memory for 500 data records, a dot-matrix LCD with backlighting, zero tracking, peak hold, and an automatic shutdown. They also have automatic broken line correction for better accuracy.
How long is the working time of LANGRY's pull-out anchor testers?
Our pull-out anchor testers have an ultra power-saving design. It ensures over 200 hours of use, making them ideal for long-term use in the field.
